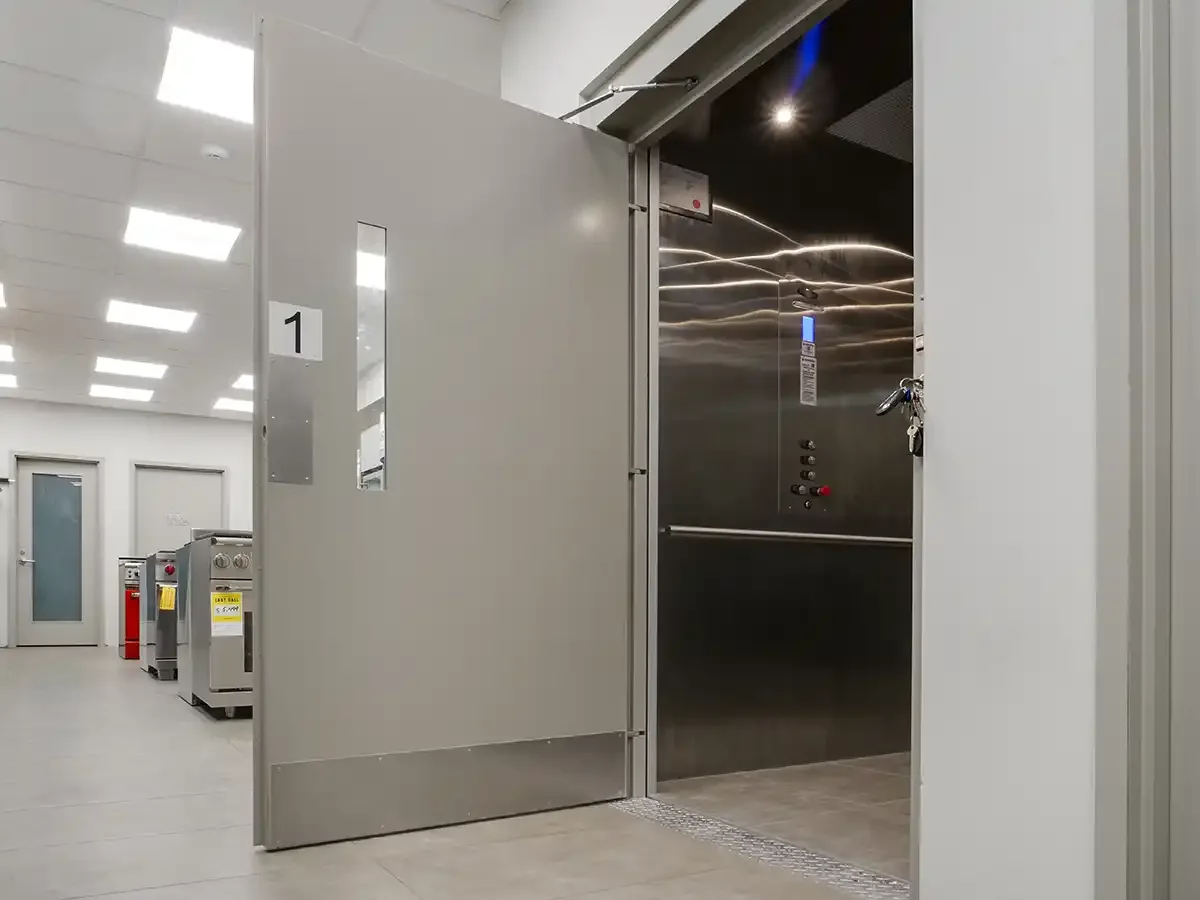

Prolift  Vertical Platform Lift

  • Enclosed cab interior - feels like a traditional elevator
  • Services up to 6 stops over a maximum travel distance of 23' (14' in USA)
  • Our fastest VPL with speed of 30 ft/min; hydraulic drive system, requires machine room
  • Constant pressure controls; for fully-automatic commercial access, see the Orion elevator
  • For indoor commercial or residential use, up to 1050 lb capacity; 1400 lb capacity HD model available
  • Cab available in a wide selection of finishes, and in multiple sizes and entry/exit configurations; casket lift option

The nuts and bolts

Features

Durable, reliable design: Well-suited to use in public buildings with its reliable hydraulic drive and durable construction.
Great value: Offers a solid no-frills design with a good complement of features to provide accessibility.
Other standard features: Constant pressure operation, variable speed valve for smooth ride, submersed pump and motor for quiet operation, automatic on/off cab lighting, magnetic floor selection/relevelling.

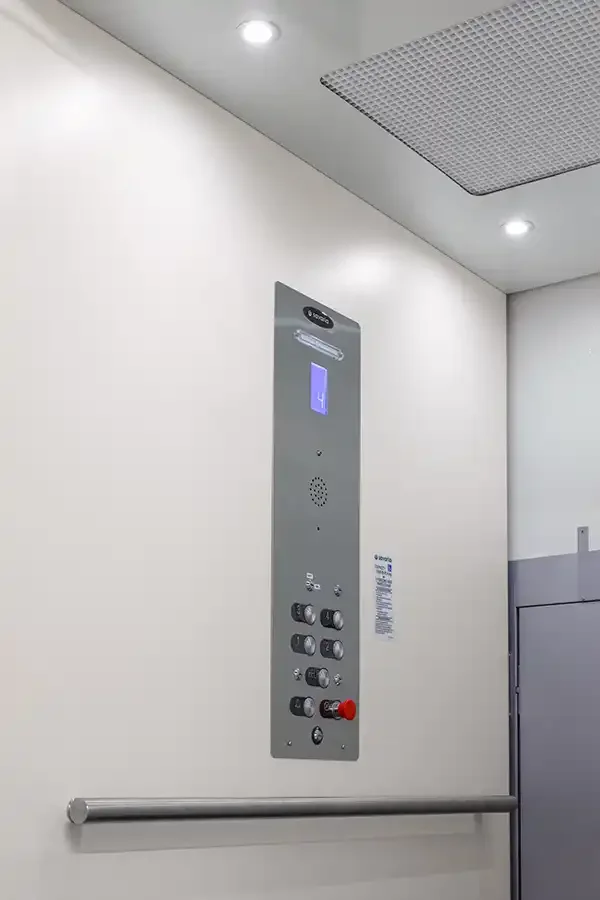

Standard finishes: Choice of color for melamine walls or plywood interior, four recessed lights with egg crate style white ceiling, stainless steel handrail and cab operating panel with metal buttons and emergency light, plywood floor.
Safety features: Emergency alarm and stop buttons, emergency battery back-up for cab lighting, alarm and lowering, car top stop switch.
Warranty: 36 months parts. Please see complete details here.

Options

Optional configurations: Type 1, 2, 3, 4 and 5
Platform Sizes:
Prolift SCL
W36" x L48" (914 mm x 1219 mm)
W36" x L54" (914 mm x 1371 mm)
W36" x L60" (914 mm x 1524 mm)
W42" x L48" (1067 mm x 1219 mm)
Prolift HD
W42" x L54" (1067 mm x 1372 mm)
W42" x L60" (1067 mm x 1524 mm)
W48" x L60" (1220 mm x 1524 mm)
Optional Cab Finishes: MDF or a choice of melamine, or plastic laminate (see color chart)
Optional Flooring: Rubber mat
Other Options: Up to 6 stops and two openings, hands-free phone, keyed on/off control panel and hall call stations, light screen, ProDoor (ULC fire-rated) with Prolock, power door operators.

Specifications

PROLIFT SCL
Applications:
Commercial, residential, indoors
Standard capacity:  750 lb (340 kg), 1000 lb (454 kg)
Optional capacity: 1050 lb (476 kg)
Maximum travel: 14' (426 cm) USA, 23' (700 cm) Canada
Nominal speed: 30 ft/min (0.15 m/s)
Drive/motor: 1:2 cable hydraulic drive, 3 hp submersed
Minimum pit: 8" (203 mm)
Minimum overhead clearance: 92" (2337 mm)
Power supply: 208 volt, three phase, 60 Hz, 30 amps or 230 volt, single phase, 60 Hz, 40 amps

PROLIFT HD
Applications:
Commercial, residential, indoors.
Standard capacity: 1050 lb (476 kg), 1400 lb (635 kg)
Maximum travel: 14' (426 cm) USA, 23' (700 cm) Canada
Nominal speed: 30 ft/min (0.15 m/s)
Drive/motor: 1:2 cable hydraulic drive, 5 hp submersed
Minimum pit: 12" (305 mm)
Minimum overhead clearance: 92" (2337 mm)
Power supply: 208 volt, three phase, 60 Hz, 30 amps or 230 volt, single phase, 60 Hz, 40 amp
