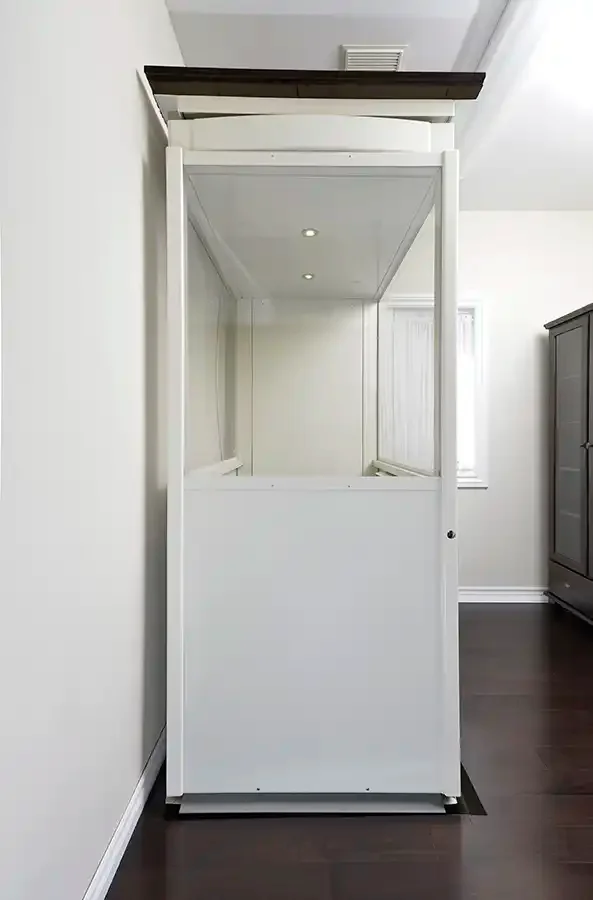

Telecab Home Lift

Space-saving through-the-floor accessibility lift, built on the same drive system as the popular and robust Savaria V-1504 wheelchair lift
Serves 2 stops with up to 23' of travel; capacity of 500 lb to accommodate a passenger with mobility device (for 845 lb capacity, see the Telecab17 home lift)
Non skid platform with gentle slope threshold for easy access of mobility device
4 cab sizes to choose from; custom sizes also available

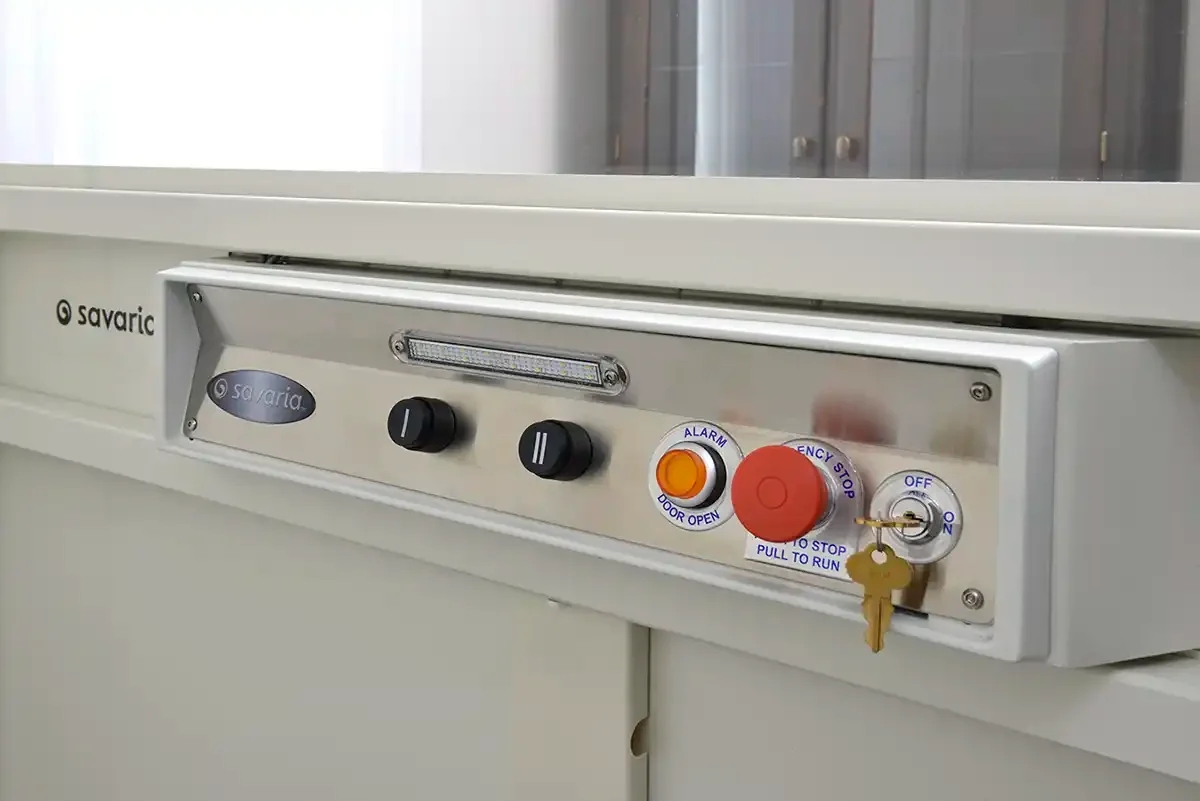

Operates by continuous pressure buttons; sensor to stop the unit if it detects an obstruction in either direction
Installation requires minimal construction; no hoistway required
Enclosed drive tower keeps mechanical components safe and out of sight
Full height flush door with grip handles, interior lighting inside 78" (1981mm) height cab

See also our new Luma through-the-floor lift! Learn more

The nuts and bolts

Features

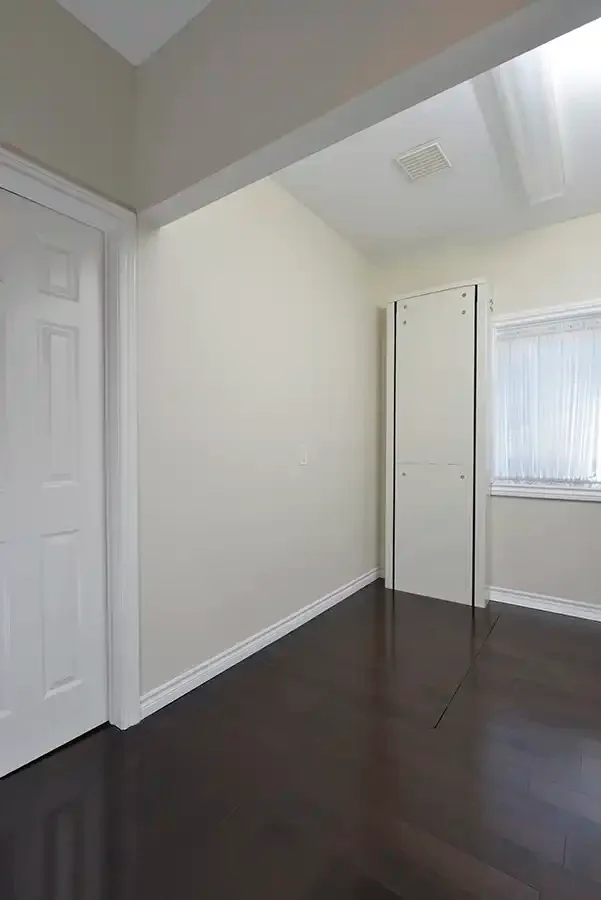

Innovative design: All-in-one drive tower and enclosed cab means no hoistway is needed and unit travels through a floor cut-out.
No hoistway or pit required: Minimal construction makes the Telecab easier to install than a traditional home elevator – only a support wall and floor cutout are required.
Modern, neutral-toned design: The unit blends into your home décor.
Reliable, enclosed drive system: Dependable and safe operation in your home.
Other standard features: Continuous pressure buttons to operate the unit, telephone, two interior ceiling lights, two-stops, cab size - 30" x 46", 78" tall (76.2 cm x 116.8 cm, 198.1 cm tall).
Standard finish options: White powder-coated finish, acrylic window panels in choice of clear or bronze.
Safety features: Interior lighting, emergency stop and alarm buttons, battery lowering in case of power failure as well as manual emergency lowering, telephone, nonskid platform, sensors on the top and under-panel to stop the unit if it detects an obstruction, pressure relief valve to prevent platform overload, door interlock, and slack chain safety device.
Warranty: 36 months parts. Please see complete details here.

Options

Optional configurations: Type 1, 2 and 5
Cab sizes:
W30" x L46" X H78" (762 mm X 1168 mm x 1981 mm) Type 5 (standard)
W32" X L53" X H78" (813 mm X 1346 mm X 1981 mm) Type 5
W30" X L47" X H78"(762 mm X 1194 mm X 1981 mm) Type 1, 2
W32" X L54" X H78" (813 mm X 1372 mm x 1981 mm) Type 1, 2
Optional cab finishes: Custom color powder coat
Other options: Battery power for up/down, two-door for left and right access, keyed call station, motorized door operation, hydraulic door closer, custom cab size, flush-mount or surface-mount call send station. Also optional, Savaria One Touch Alert System. Using an owner-supplied, pre-paid nano sim card*, this one-button system installed by your Savaria dealer, provides two-way communication to pre-programmed emergency contacts in case of emergency.

*not compatible with 5G or eSIM cards.

Specifications

Applications: Residential, indoors
Capacity: 500 lb (228 kg)
Maximum travel distance: 23' (7 m) with 2 stops
Nominal speed: 20 ft/min (0.10 m/s)
Minimum floor cutout: 36" x 60.5" (914 mm x 1537 mm)
Minimum overhead required: 96" (2438 mm) to have 6" minimum clearance by code,
92" (2337 mm) requires variance
Drive: 2:1 roller chain hydraulic
Motor/pump: 24 VDC, 3 hp (2.1 kW) gear type
Power supply required: 110 VAC, 20 A, 60 Hz, single phase
