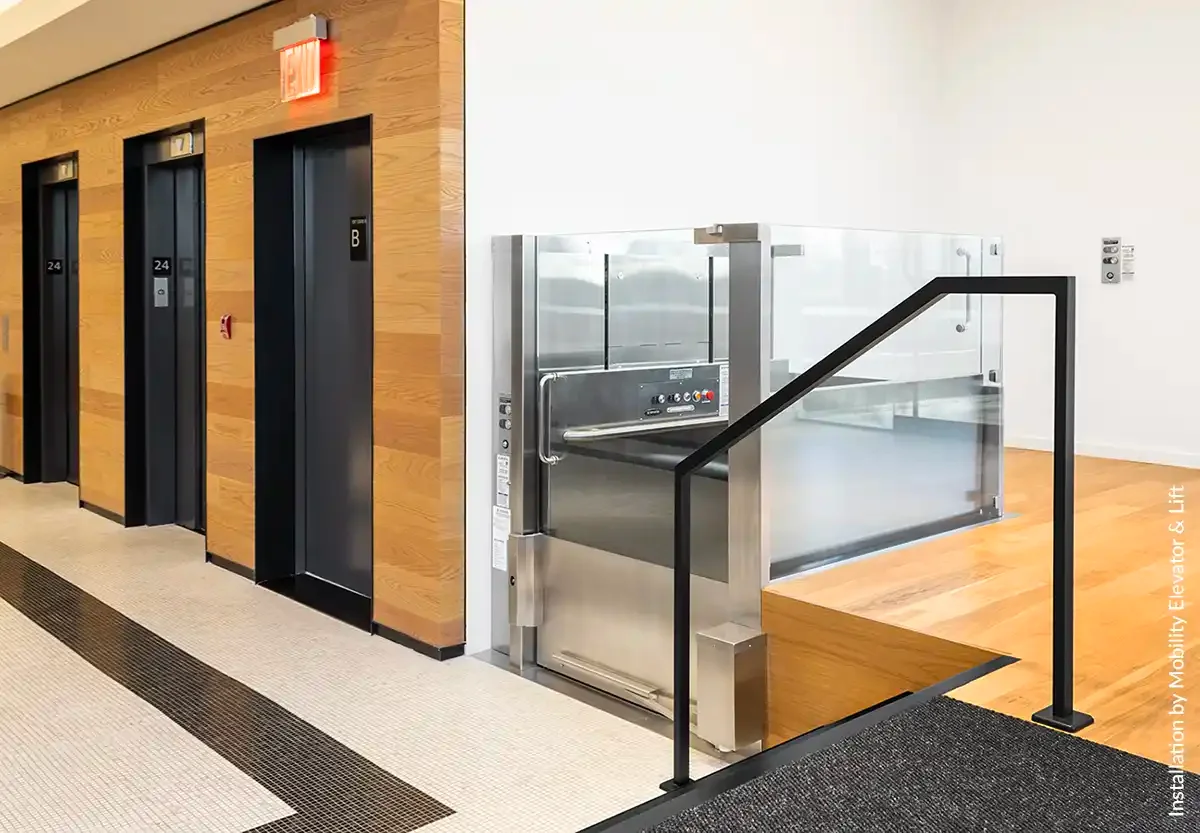

V-1504 Prestige  Vertical Platform Lift

  • Luxury lift built from half-inch structural tempered glass with no visible frame for indoor commercial or residential projects
  • Carries a wheelchair and passenger between 2 stops, up to 6' of travel; 750 lb capacity
  • Framed version available for 3 stops and up to 12' of travel
  • Doors and gates available; optional paint colors available for tower and platform
  • 20 ft/min hydraulic drive system operated by constant pressure controls; no machine room needed
  • ADA-Compliant or custom platform sizes; same-side, straight-through or 90º entry and exit
  • See V-1504 Lux for an enclosed glass lift serving up to 4 stops and up to 23' of travel

The nuts and bolts

Features

Flexible design and feature options: In stainless steel or painted in a creative optional color, this lift will make a distinct addition to any commercial lobby.
Quiet and reliable hydraulic drive: Smooth start, stop and overall ride that works dependably.
Machine roomless: Enclosed drive system means no machine room is required, making the installation process easier.
Other standard features: 36" x 54" standard platform, continuous pressure button operation, modular rail construction for easy construction, handrail, automatic battery recharging system.
Standard finishes: With half-inch structural tempered glass and no visible frame, this lift is the ultimate statement for creating barrier-free access in commercial applications. Tower is finished in primer grey. The framed Prestige version has frameless glass doors and 3" x 3" structural tubing in each corner. The structure underneath the stainless steel cladding is finished in primer gray or painted in the optional color of the lift.
Safety features: Emergency stop button on car, non-skid platform, manual lowering device, 42 1/8" (1070 mm) side panels, keyed car buttons and keyed call stations, safety brake, door locks.
Warranty: 36 months parts. Please see complete details here

Options

Optional configurations: Type 1, 2, 3 and 4; Framed Prestige Type 1 only
Platform sizes:
W36" x L48" (914 mm x 1219 mm), Type 1, 2, 3, 4
W36" x L54" (914 mm x 1371 mm), Type 1, 2, 3, 4
W36" x L60" (914 mm x 1524 mm), Type 1, 2, 3, 4
Custom sizes up to 42" x 60" (1067 mm x 1524 mm)
Optional finishes: Laminated tempered glass for enclosure; a wide array of powder-coat colors in gloss, semi-gloss or textured finish are available for tower, including custom color (see color chart).
Other options: Commercial package including alarm, keyless operation, keyless hall call (subject to type of application), steel ULC fire-rated ProDoors, power gate and door operators, acrylic inserts for gate, Savaria WR-500 weather-resistant lock, folding seat, 60 mm buttons, ADA hands-free phone.

Specifications

Applications: Residential, commercial, indoors, outdoors
Standard capacity: 750 lb (340 kg)
Maximum travel distance: 6' (1.8 m)
Nominal speed: 20 ft/min (0.1 m/s)
Drive/motor: 2:1 chain hydraulic, 3 hp, gear-type motor
Minimum pit: 3" (76.2 mm)
Power supply: 110 volts, 20 amp, single phase, 60 Hz


Documents

    Gallery of installations

    Savaria V-1504 Prestige Vertical Platform Lift 1Thumbnail for Savaria V-1504 Prestige Vertical Platform Lift 1

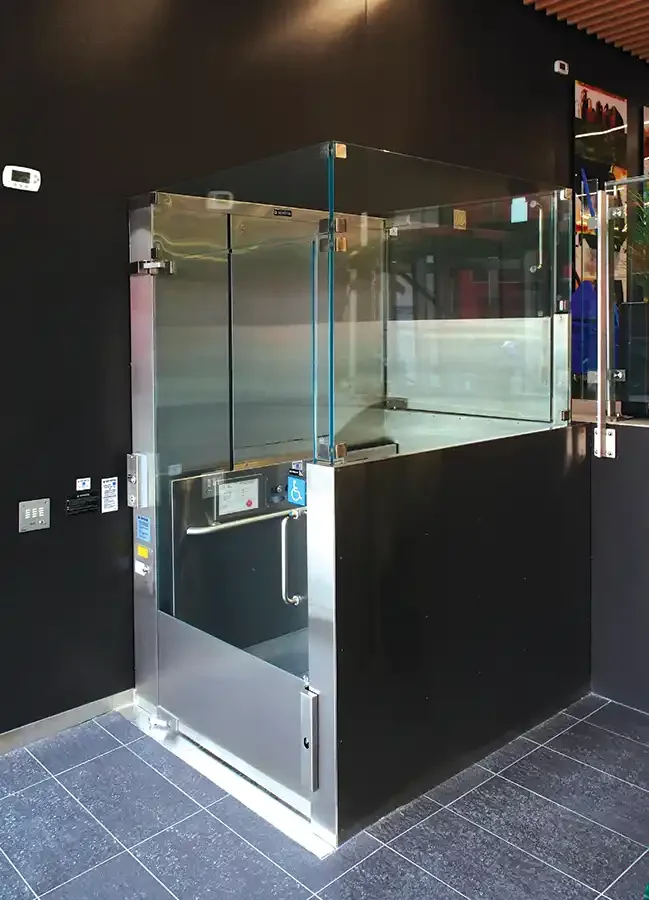

    V-1504 Prestige vertical platform lift

    V-1504 Prestige installed outdoors at an upscale modern meeting and event space

    Savaria V-1504 Prestige Vertical Platform Lift 2Thumbnail for Savaria V-1504 Prestige Vertical Platform Lift 2
    V-1504 Prestige vertical platform lift

    A full height glass enclosure and stainless steel tower complement the modern space

    Savaria V-1504 Prestige Vertical Platform Lift 3Thumbnail for Savaria V-1504 Prestige Vertical Platform Lift 3

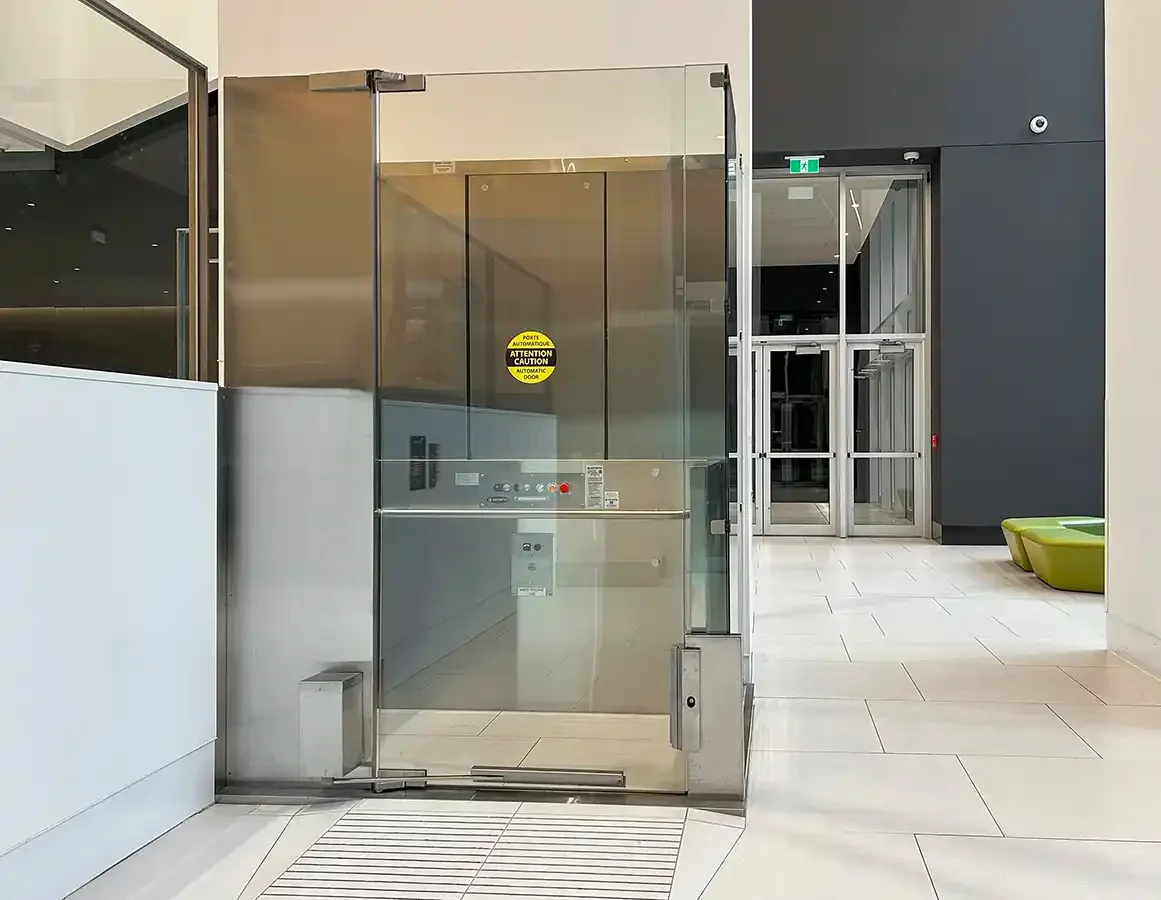

    V-1504 Prestige vertical platform lift

    Upper level of a V-1504 Prestige showing the glass enclosure and upper gate

    Savaria V-1504 Prestige Vertical Platform Lift 4Thumbnail for Savaria V-1504 Prestige Vertical Platform Lift 4

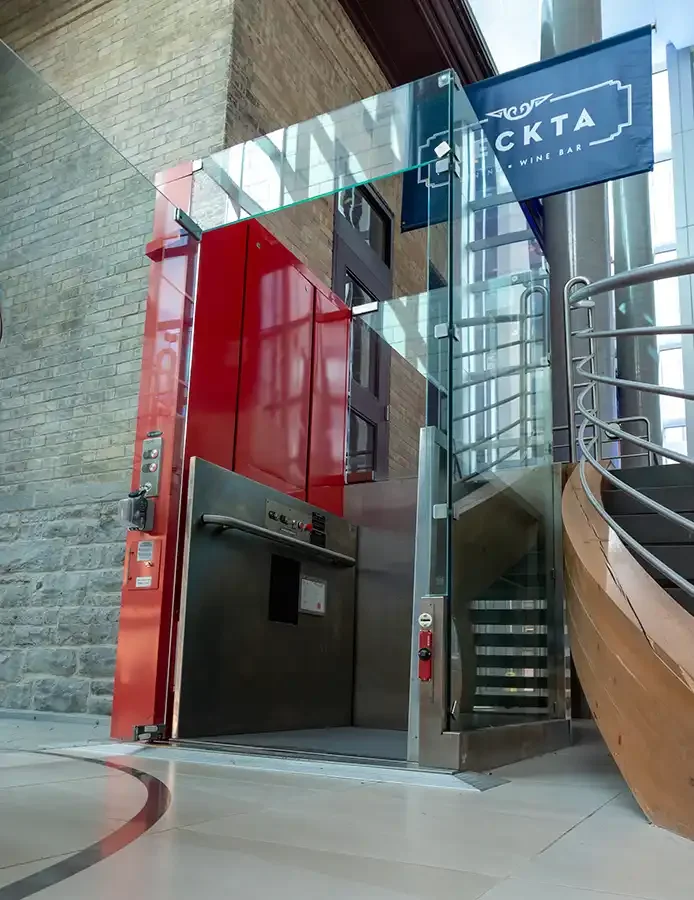

    V-1504 Prestige vertical platform lift

    A red drive tower adds a touch of color to this V-1504 Prestige in a mixed use space

    Savaria V-1504 Prestige Vertical Platform Lift 5Thumbnail for Savaria V-1504 Prestige Vertical Platform Lift 5

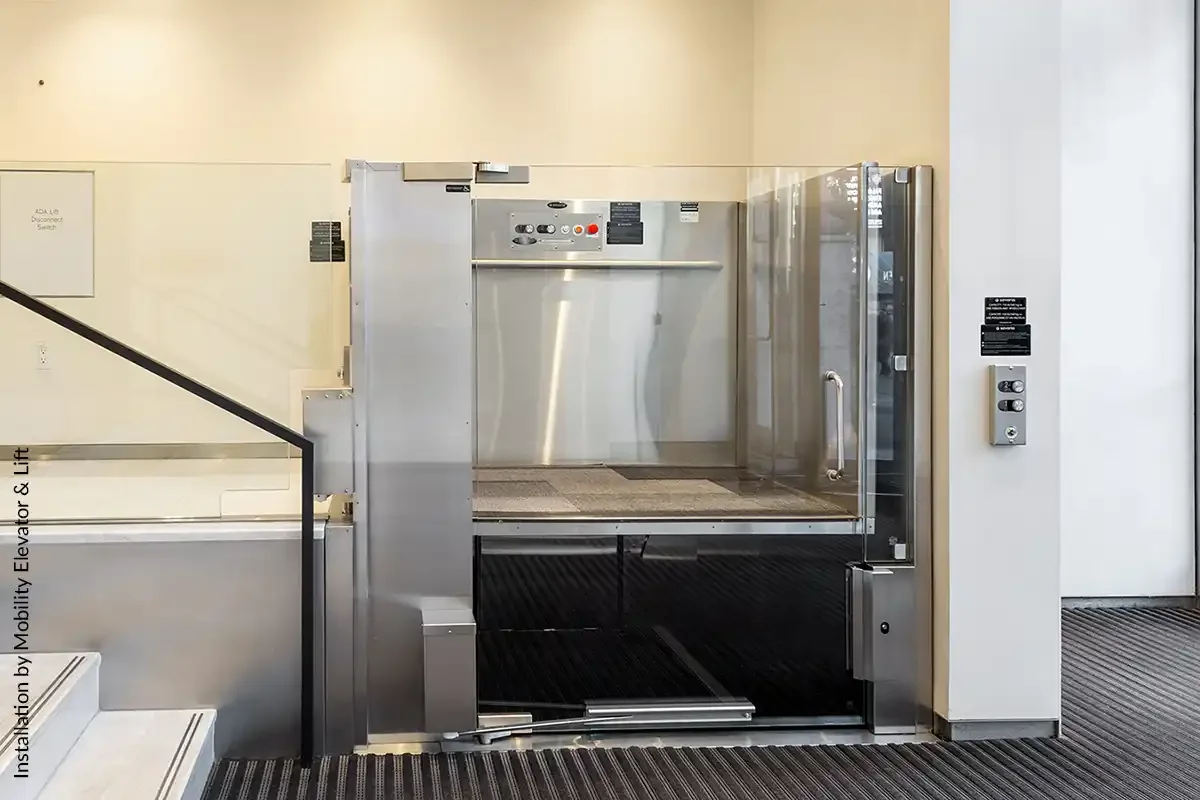

    V-1504 Prestige vertical platform lift

    The V-1504 Prestige suits projects that combine historic and modern design elements

    Thumbnail for

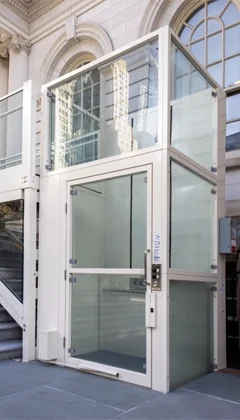

    V-1504 Prestige vertical platform lift

    Framed V-1504 Prestige with slanted top and bronze acrylic enclosure inserts

    Savaria V-1504 Prestige Vertical Platform Lift 7Thumbnail for Savaria V-1504 Prestige Vertical Platform Lift 7

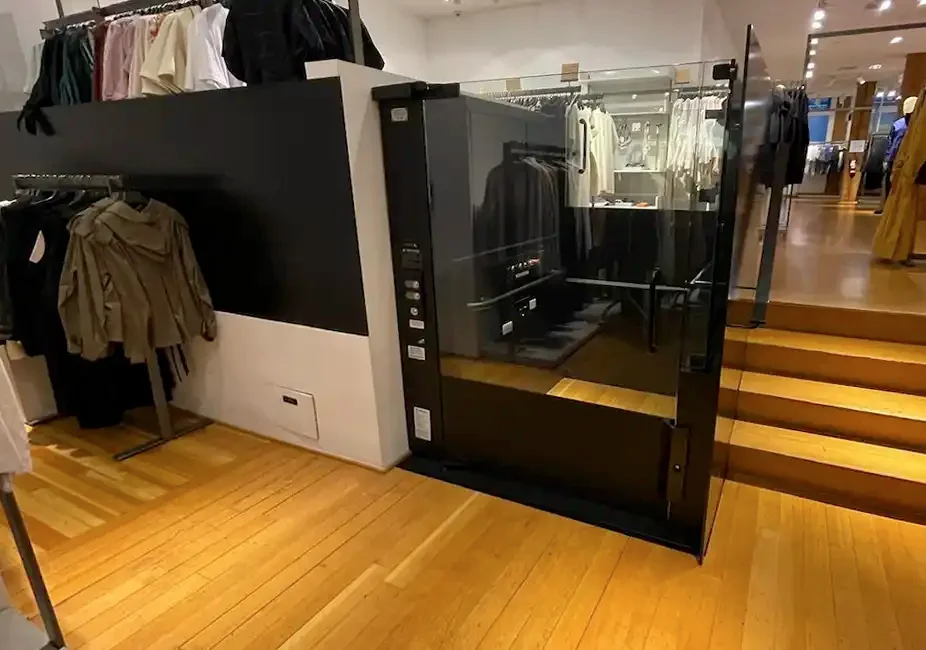

    V-1504 Prestige vertical platform lift

    A V-1504 Prestige adds accessibility to a retail space without obscuring merchandise

    Savaria V-1504 Prestige Vertical Platform Lift 8Thumbnail for Savaria V-1504 Prestige Vertical Platform Lift 8
    V-1504 Prestige vertical platform lift

    The clean glass and stainless steel V-1504 Prestige is perfect for supermarket access

    Savaria V-1504 Prestige Vertical Platform Lift 9Thumbnail for Savaria V-1504 Prestige Vertical Platform Lift 9

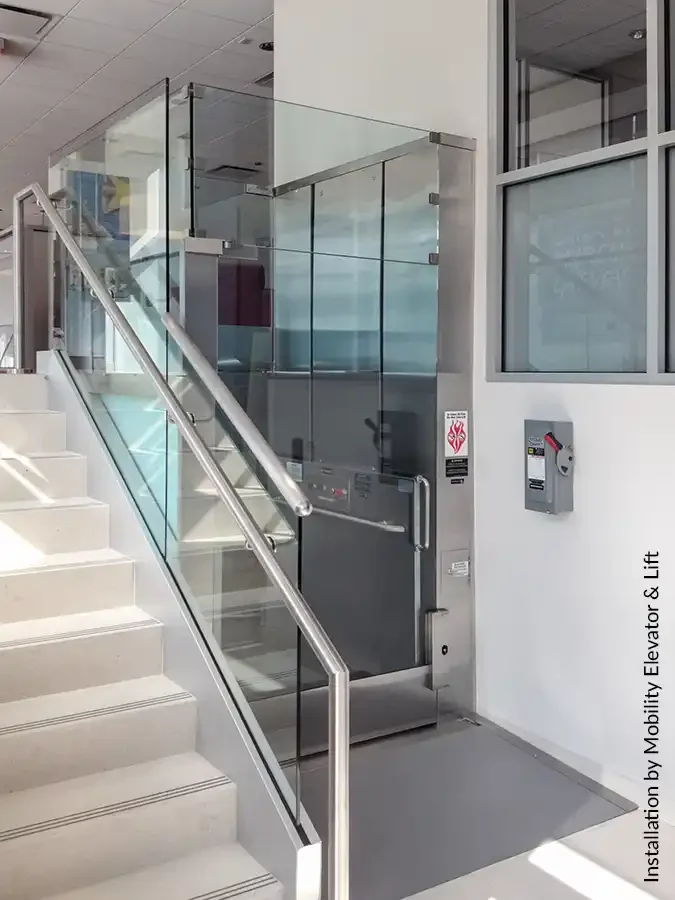

    V-1504 Prestige vertical platform lift

    V-1504 Prestige is ideal for low rise access in urban projects where space is limited

    Savaria V-1504 Prestige Vertical Platform Lift 10Thumbnail for Savaria V-1504 Prestige Vertical Platform Lift 10
    V-1504 Prestige vertical platform lift

    Clean lines on a lift with a full glass hoistway and stainless steel platform and tower
