Multilift Vertical Platform Lift

Our workhorse wheelchair lift

The Multilift vertical platform lift is a wheelchair lift designed for home use, and basic commercial* needs. Ideal for outdoor applications, the Multilift is often installed for use as a porch or deck lift. The ACME screw drive provides simple, dependable operation for up to a 750 lb capacity. Offered as a standard two-stop design, the lift can also be ordered with a factory-built enclosure.

*where permitted by code

FIND A DEALER

Why choose the Multilift wheelchair lift

Durable all-season performance

The Savaria Multilift vertical platform lift operates with continuous press controls, features a non-skid platform and travels up to 48", or optionally up to 72". The attached drive tower houses the motor eliminating the need for a machine room. It is an ideal lift for use with wheelchairs, power chairs and scooters to gain access from the ground level into the home either outside, or when installed in a garage.

Durable design

Known as a workhorse lift, the Multilift is built to withstand harsh outdoor conditions. Powder coated steel with a weather resistant lock, zinc-coated platform and drive mechanism contained in the lift tower, make this lift weather-tough.

ACME screw drive

Simple install

Residential or commercial use

The Multilift is commonly used for home use, installed outdoors or inside a garage for additional weather protection. In many jurisdictions, the Multilift can also be used in commercial or public buildings. In commercial settings, the lift can be used inside to access raised areas, short mezzanines and changes in levels as a standard lift, or with a factory-built enclosure. Take note that vertical platform lifts cannot penetrate a floor. Enclosure models can be installed with a pit for level entry, or an access ramp when a pit is not feasible.

Safety features

The Multilift includes a back-up nut with safety switch, as well as manual lowering crank for emergency use. The unenclosed model includes an obstacle sensor system that stops the lift if it encounters any obstructions. An emergency stop button is available on the platform control. The top landing gate, and platform gate (if equipped) include an electro-mechanical lock to prevent the gate from being opened unless the lift is available at the landing.

Multilift Wheelchair Lift

Standard features and finish

A full depth handrail is also included on the platform
Operating panel on-board the lift that includes an emergency stop/alarm button with keyed access
Call stations are included for each landing to summon the lift with keyed access for security purposes
The standard finish is beige powder coat with 42 ⅛" side walls on the platform
The platform gate (when required), or upper landing gate feature standard steel panels*
The Multilift uses continuous pressure operation and features a non-skid, zinc-coated platform in a choice of three standard sizes
The standard unit, without enclosure, includes an automatic access ramp (16" for home use, 24" for commercial use) for the lower landing

*For travel distances above 30" in the USA, 24" in Canada, and all commercial applications, a Savaria top landing gate is required

Additional Options

Battery

Full battery back-up operation can be added to allow the lift to operate several trips up and down during a power failure.

Keyless

The lift can be ordered with keyless operation on the platform and call stations.

Joystick

Joystick or pendant operation can be added to accommodate those with additional mobility issues.

Fixed ramp

A fixed access ramp is also available.

Finishes

Optional powder coat finishes include gloss, semi-gloss and Velvacoat textures in a variety of colors. Over 200 RAL colors are also available at additional cost.

Gates/Doors

You can upgrade the gates to include clear acrylic or glass insert panels. Gates and doors can be upgraded with power operators, including large 60 mm buttons.

Models

Vertical platform lift installed alongside a set of metal stairs.

Multilift Standard

Open-style without the need for a full shaft or enclosure. Suitable for both indoor and outdoor installations. The standard Multilift typically offers straight-through access, but it can be optionally ordered with 90-degree access for entry/exit.

Vertical platform lift providing accessibility to the upper level of a patio.

Multilift Enclosure

For added weather protection, a Multilift with factory-built aluminum enclosure is a great option. There is a range of options for the enclosure including acrylic or glass insert panels, as well as gates and door options. A domed roof with active ventilation system is also available to add. Enclosure models can be ordered with straight-through, 90-degree or a single same-side entry/exit.

A mobile vertical platform lift to temporarily access various platforms and stages.

Mobile Multilift

For temporary needs, the Multilift mobile model provides up to 4 feet of travel and two stops. The lift can be moved as needed and includes two platform gates and an automatic access ramp. The platform is 36" x 48" with straight-through access. Locking wheels allow the lift to be positioned and stabilized for use. This lift can be used for accessing a stage or for event use.

Grayscale image of a Luma through the floor lift with a white notebook graphic overlaid, featuring a green line‑art icon of an elevator shaft.

Not sure if the Multilift is the right option for your home?

See our guide to explore all options to make your home barrier-free.

LEARN MORE

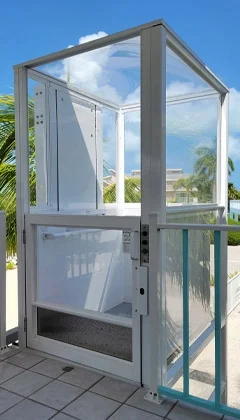

Multilift vertical platform lift with a white frame on a balcony, overlooking palm trees and a bright blue sky.

Need to make your building accessible?

Learn more about commercial accessibility options. Explore all our options for inside or outside.

LEARN MORE

Multilift Specifications

Applications

Commercial¹, residential, indoors, outdoors

Drive/motor

ACME screw drive and back-up nut, 1 hp, relay logic controller

Standard capacity

750 lb (340 kg)

Nominal speed

8 ft/min (0.04 m/s)

Maximum travel distance

48" (122 cm), optionally up to 72" (183 cm)

Commercial use in a hoistway¹12-14' for USA/Quebec
23' (7 m) Rest of Canada

Commercial decklift application 60"

Power supply

120 VAC, 15 A, 60 Hz, single phase (must be a dedicated electrical line).

One Touch Alert

Optional. Learn more.

Savaria Link

Optional. Learn more.

Platform sizes

W34" x L48" (914 mm x 1219 mm)
W34" x L54" (914 mm x 1372 mm)
W34" x L60" (914 mm x 1524 mm)
36" and 42" wide platforms optional

Entry/exit configurations available

Note that to meet accessibility standards, there are additional considerations, please see more here.

Warranty

A 36-month warranty against defective parts is included through your local dealer.²

Complies with ASME A18.1 (US), and B.355 & B.613 (Canada), state and local codes may differ.
Please note the full details of the Savaria warranty, including the requirement for regular maintenance.

Multilift Gallery

See Multilift installations in the field

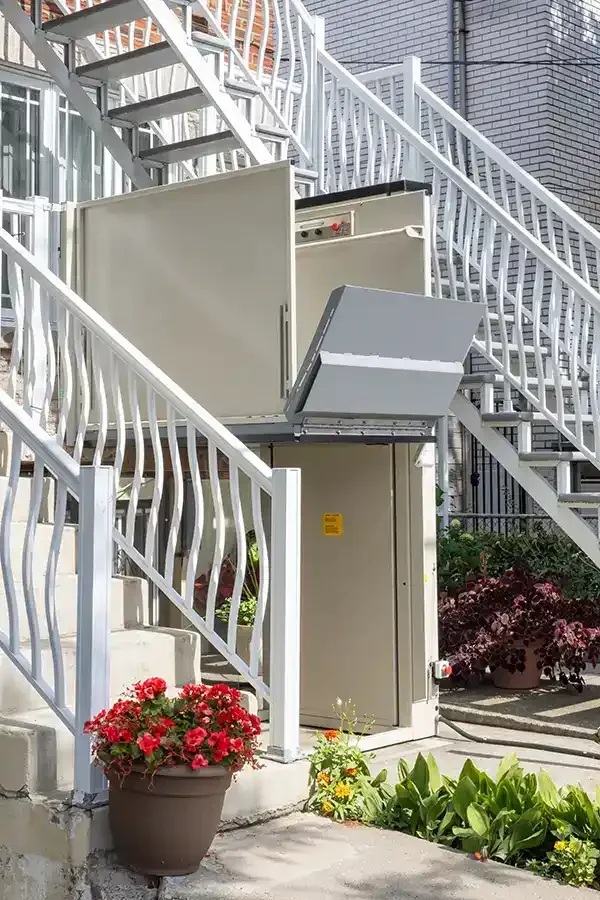

Outdoor wheelchair platform lift installed at a residential entrance with open safety gates

The Savaria safety gate is installed with an interlock to prevent it from being opened unless the lift is safely at the landing. This meets building code and safety standards.

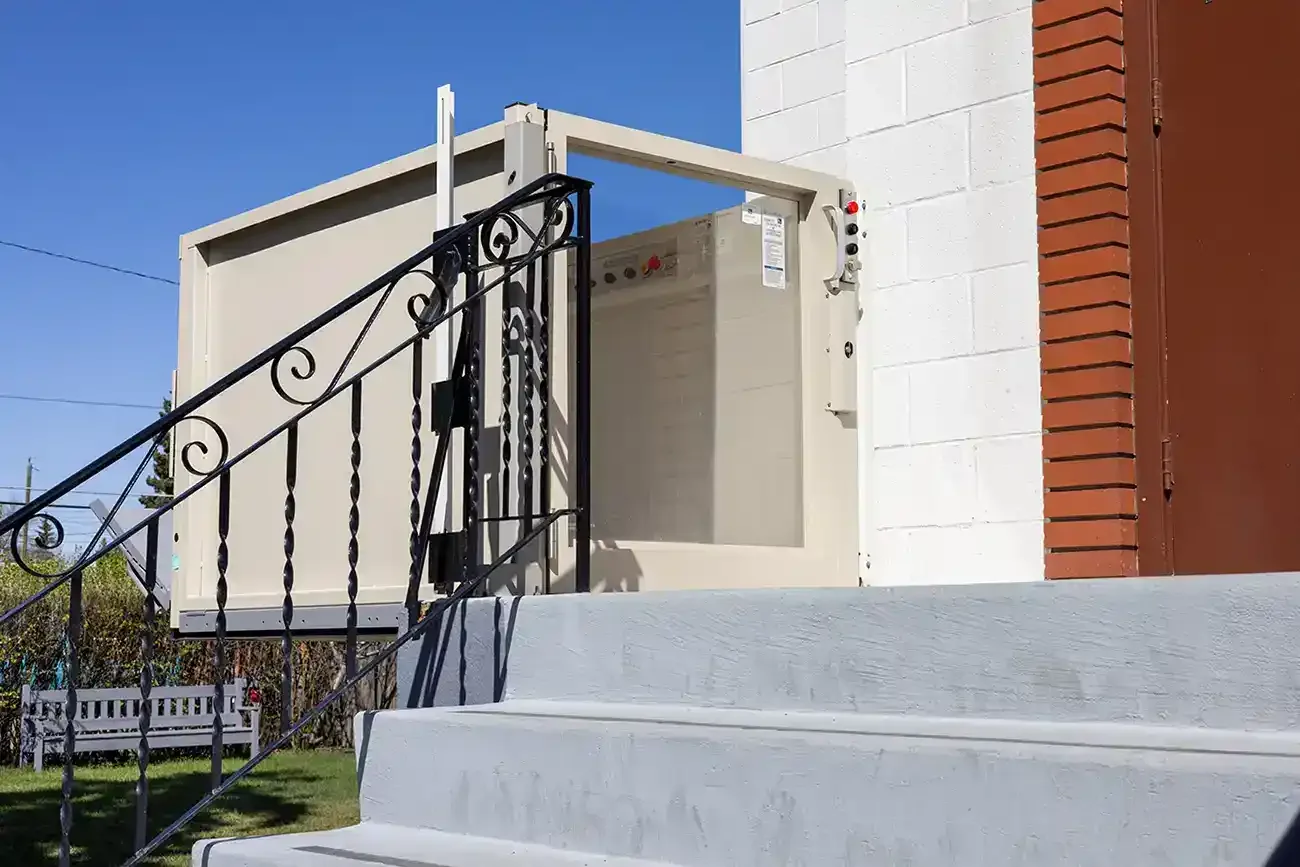

Outdoor vertical platform lift with beige metal enclosure installed beside a residential building, providing wheelchair and mobility accessibility from ground level to elevated entry with exterior stairs and railing.

This Multilift at a church in Calgary features a gate with clear insert and offers accessible access for its congregation.

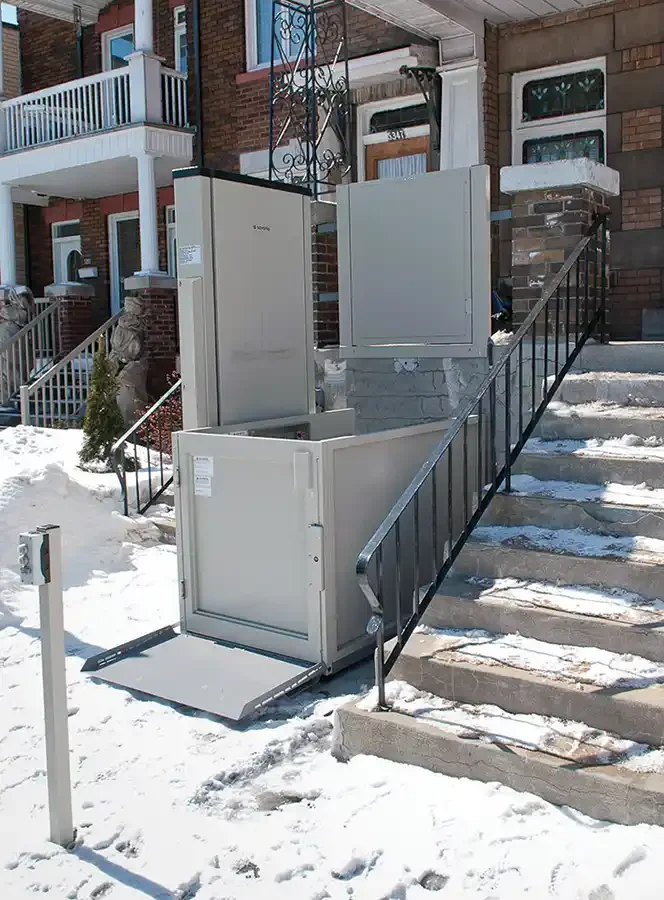

Outdoor wheelchair platform lift installed alongside residential steps in a snowy urban setting

Winter-ready! The Multilift was designed in Canada and is known as a reliable lift. This one is installed in Montreal.

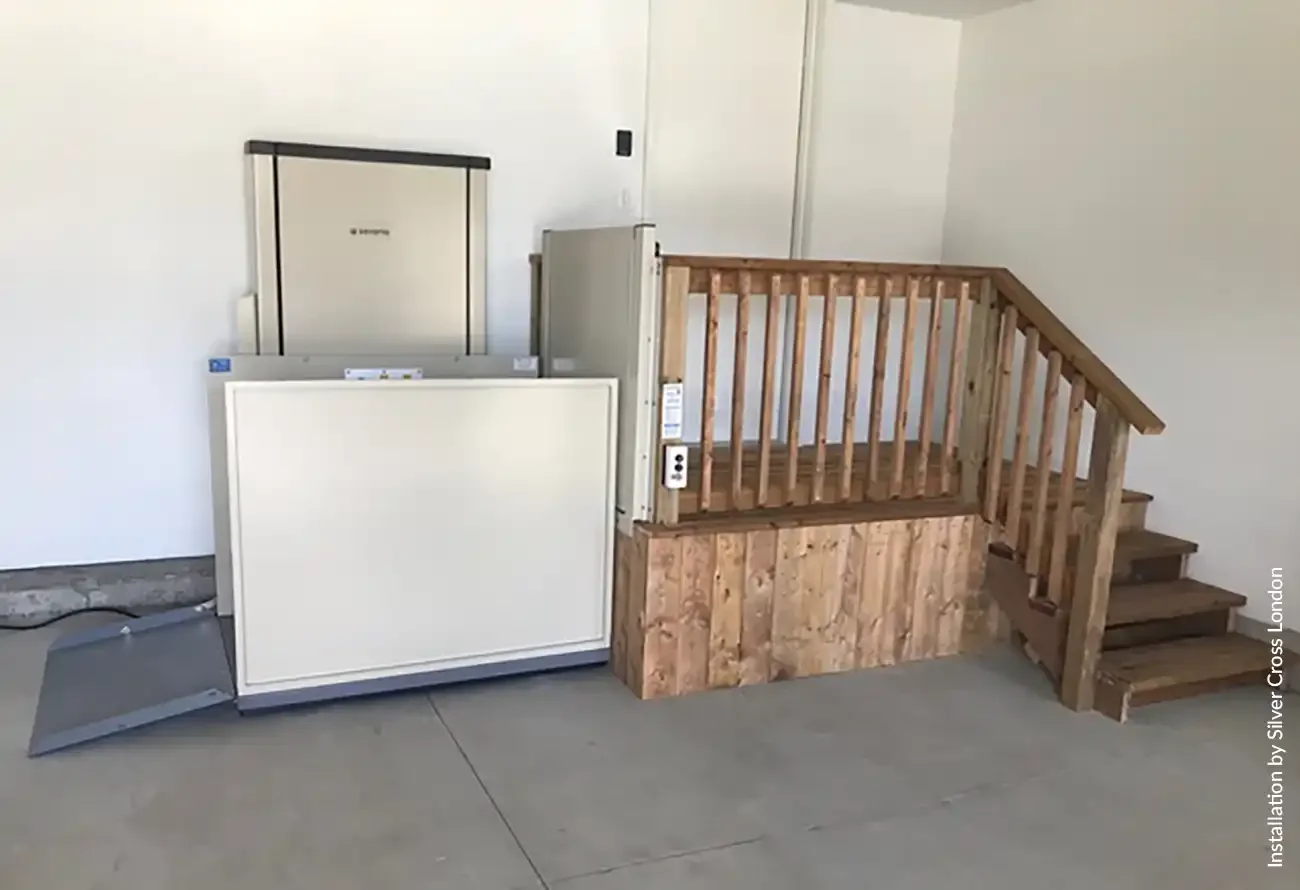

Indoor residential vertical platform lift with beige metal enclosure installed in a garage or interior space, providing wheelchair and mobility accessibility to an elevated landing with adjacent wooden stairs and railing.

Installing a Multilift in a garage is a great way to stay dry and warm. This one has a 24 inch access ramp for each of entry. Installed by Silver Cross London.

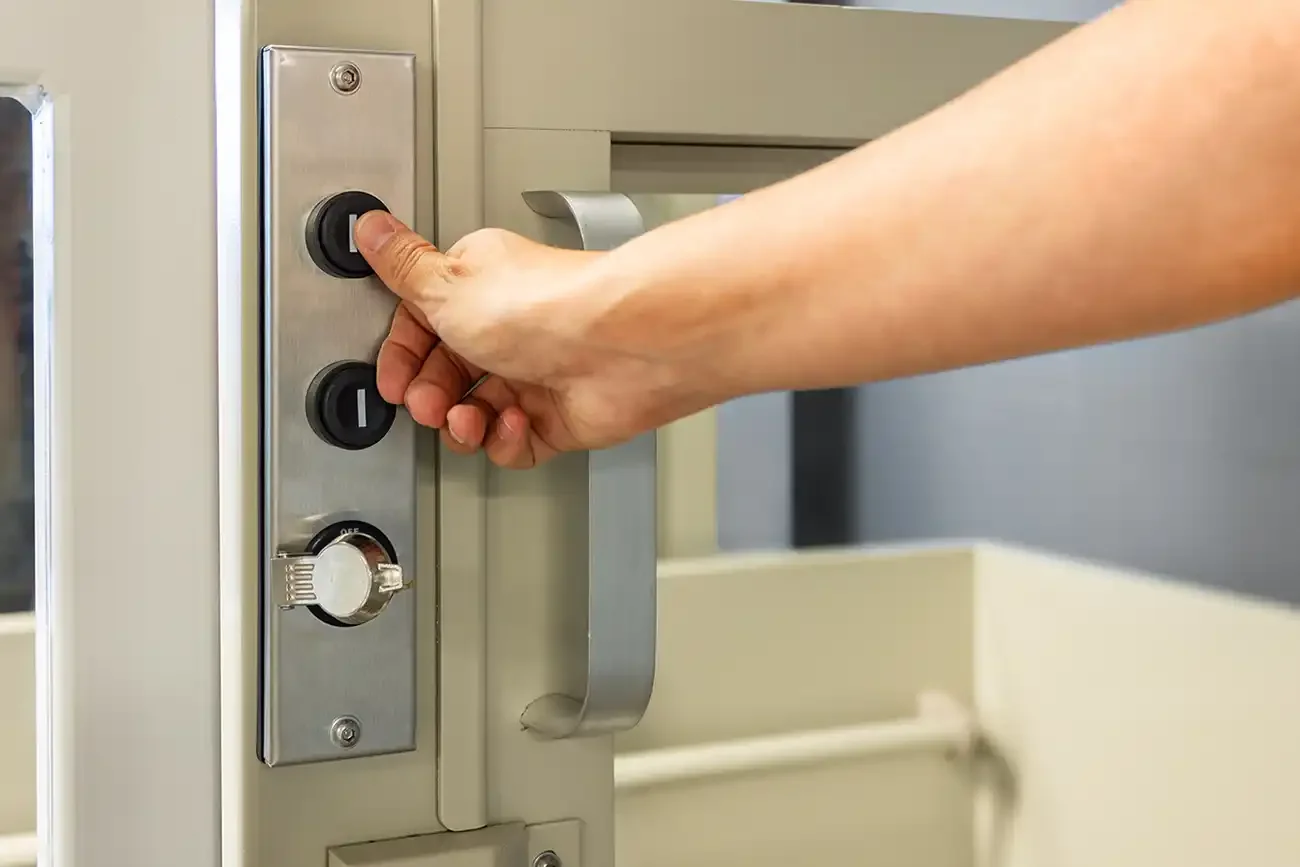

Close‑up view of a vertical platform lift control panel with tactile push buttons and key switch being operated, highlighting accessibility lift safety controls and user access features.

The Multilift vertical platform lift features constant pressure buttons to operate it.

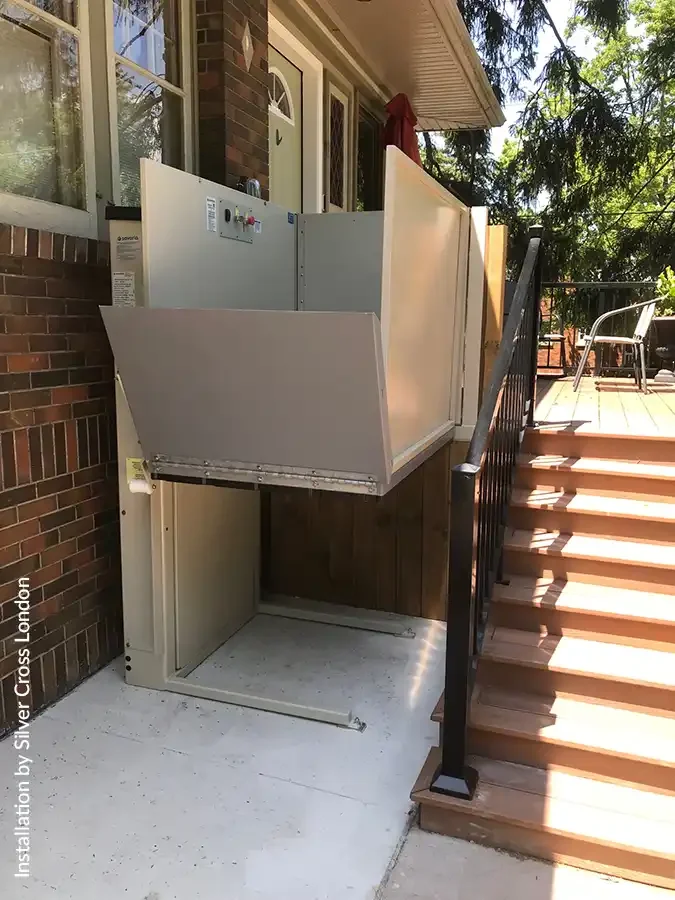

Outdoor residential vertical platform lift with beige metal enclosure installed beside a brick home, providing wheelchair and mobility accessibility between ground level and an elevated wooden deck next to exterior stairs.

Many older homes have a porch similar to this. Silver Cross London installed this Multilift and many others like this, allowing the homeowners to stay there and keep their independence.
