Orion Cab Styles
Savaria offers two main cab styles – the traditional cab and the Orion 17 cab design. There is a variety of different cab factory finishes including fire-rated overlay panels. In addition to what is listed below, custom options are also available to suit your needs. The Orion features two-speed sliding cab gates and landing doors that are available in different colors and finishes.
The Traditional Orion Cab Starts with Steel
TimelessThe traditional-style Orion cab features a base cabin of black or architectural white painted steel. You can add fire-rated plastic laminate or melamine overlay panels in a choice of colors. As an upgrade, you can choose a base cabin in stainless steel #4 finish or blackened stainless steel and add overlay panels if you wish. The traditional cab includes a white steel ceiling with four silver-trimmed pot light fixtures, along with stainless steel handrail and cab operating panel (COP) and hall calls with digital floor indicators. Choose your paint color for the sliding cab gates and doors.
Steel Wall Panels Options
Architectural white
Black (only available with raised panels)
Stainless steel #4
Blackened stainless steel (optional)

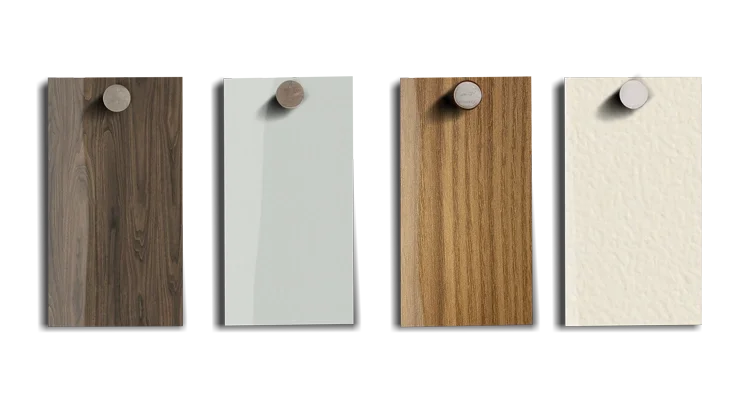

Optional Melamine
Raised panels on steel wall

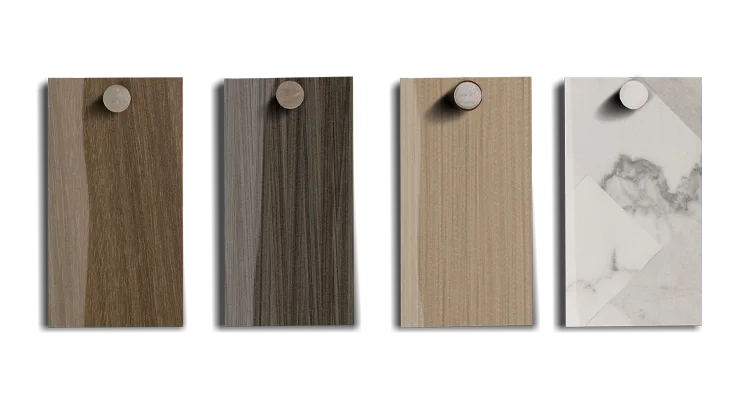

Optional Plastic Laminate
Raised panels on steel wall
The Orion 17 Cab Features Stainless Framing
Modern styleThe Orion 17 cab features plastic laminate panels framed in stainless steel. Choose from three standard laminates: Reclaimed Wood, Gray or Walnut. The Orion 17 cab also includes stainless steel two-speed cab gates and a dropped ceiling with overhead lighting as well as 6 silver LED flush-mount fixtures. Add two-speed landing doors in your choice of color or finish.
Orion Possible Configurations
The table below details the sizes and entrance types available for each Orion cab design.
| Cab Size | Type 1 | Type 2 | Type 3 | Type 4 |
|---|---|---|---|---|
 |  |  |  | |
| Traditional Cab 42x54 | ✓ | ✓ | ||
| Traditional Cab 42x60 | ✓ | ✓ | ||
| Traditional Cab 48x54 | ✓ | ✓ | ||
| Traditional Cab 51x51 | ✓ | ✓ | ||
| Orion 17 Cab 42x54 | ✓ | ✓ | ||
| Orion 17 Cab 42x60 | ✓ | ✓ | ||
| Orion 17 Cab 48x54 | ✓ | ✓ |

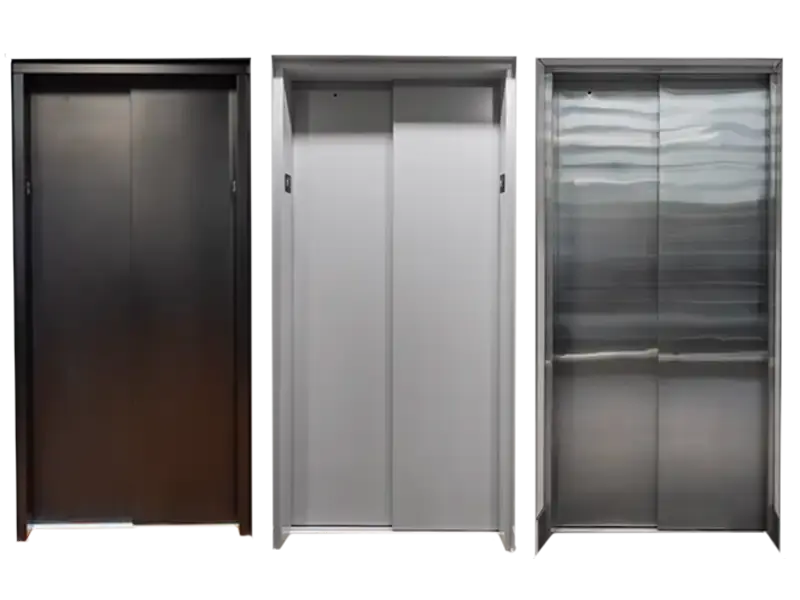

The Orion elevator features two-speed automatic gates and doors with infrared closers. Order them in black or white painted steel, choose a custom paint color, or upgrade to stainless steel, blackened stainless or brushed brass. The Orion 17 comes standard with stainless steel cab gates.

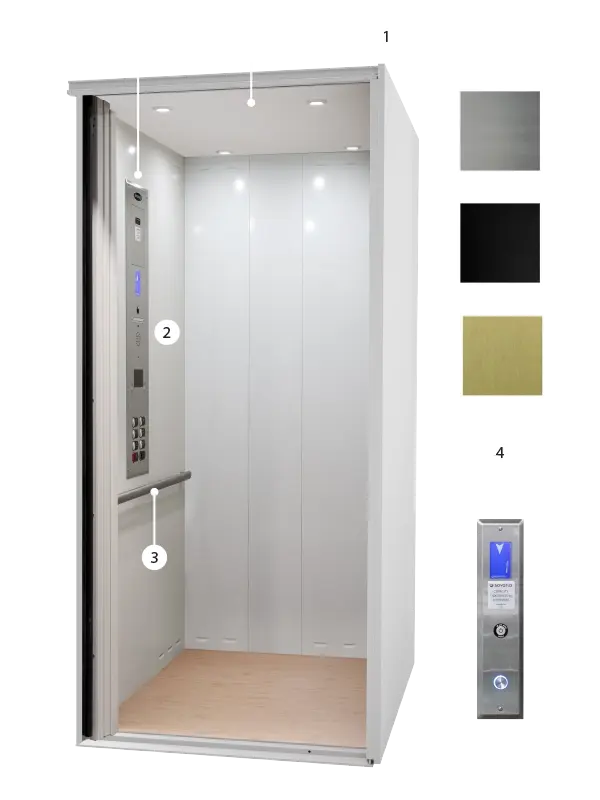

Fixture Options
Fixtures include:
- Light fixtures and cab operating panel are available in:
- stainless steel (#4)
- blackened stainless steel
- brushed brass (#4)
- Phone box (where added)
- The handrail
- Hall call
Other options: Local elevator code and your AHJ may dictate certain options that you will have to add. Your Savaria dealer will guide you on these.
More to Orion Than You Think

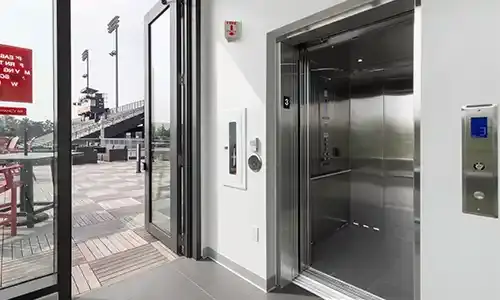

Stainless steel not only looks good, but it’s durable and practical as well. The all-stainless Orion cab includes stainless steel cab walls and ceiling, cab gates, handrail, cab operating panel and hall calls. This is a popular choice for its upscale look and feel.

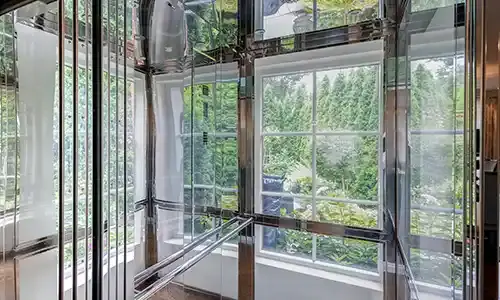

Adding glass to the Orion cab is possible in some cases and makes for a beautiful upscale look. This is usually paired with a glass hoistway (by others) and may be allowed if your local authority (AHJ) provides approval.

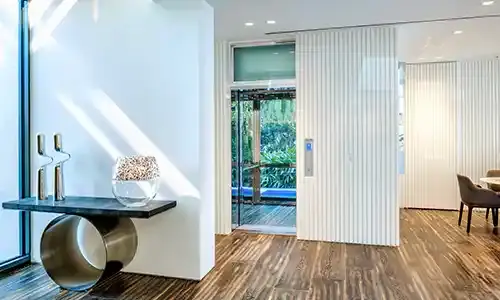

In some jurisdictions, the Orion can be installed in a private home. In these cases, additional finish options may be available.
Savaria aims to please and offers many ways to customize your Orion elevator including glass, mirror-stainless and more. Custom sizes are also available for your cab. Some options are limited by local code, consult your local Savaria dealer.
