Compare Home Elevators

Traditional Home Elevators

Our three drive systems of traditional home elevators have slightly different features and benefits as listed below. All drive systems offer the same finish options that you can explore with our Home Elevator Configurator.

Traditional Home Elevator Comparison Chart

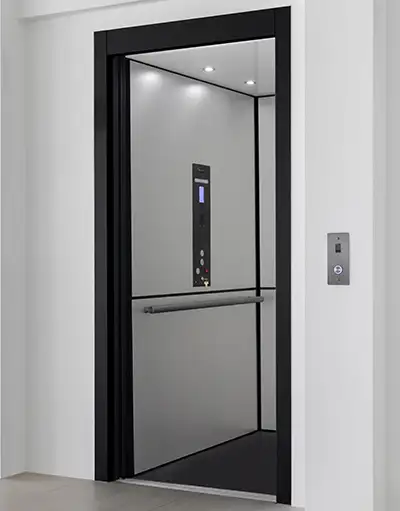

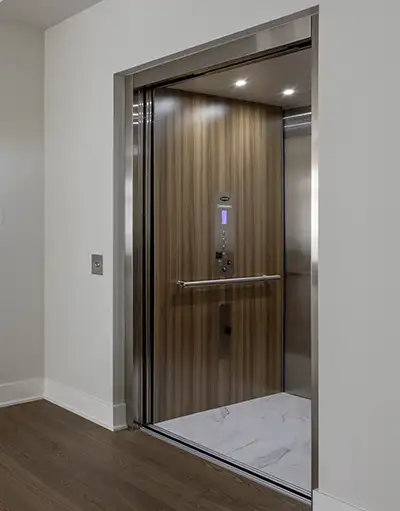

	Eclipse	Infinity	Zenith

Drive	Geared chain traction	Hydraulic	Geared rope traction
Machine room	Optional*	Required	No
Capacity (lb)	750, 950, 1000 (HD)	1000, 1400 (HD)	1400
Minimum pit depth	6", 10" (HD)	8", 12" (HD)	10"
Minimum overhead**	96"	92", 100"***	108"
Nominal speed	40 ft/min	36 ft/min	40 ft/min
Noise level	Some	Quiet	Very quiet

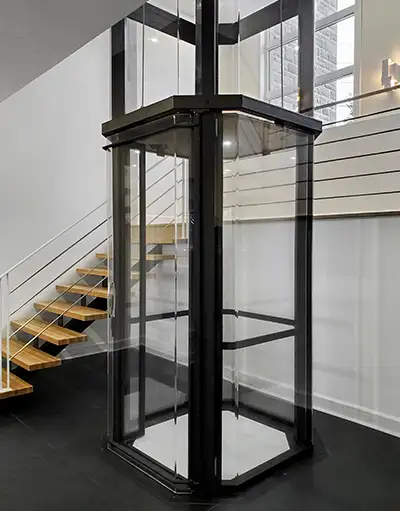

Vuelift Panoramic Elevator

We offer 6 models of Vuelift elevators, with two distinct shapes of round or octagonal.
All Vuelift models offer a choice of paint color for the framing with a choice of glass or acrylic panels.

Panoramic Vuelift Elevator Model Comparison Chart

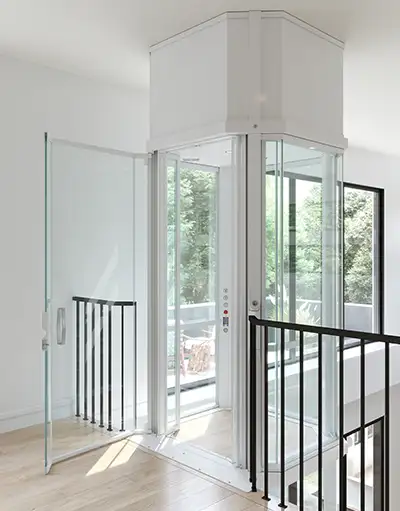

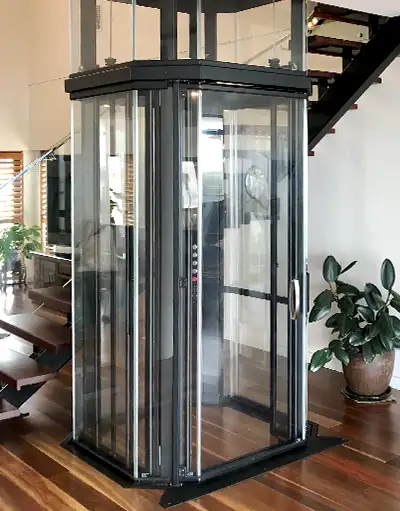

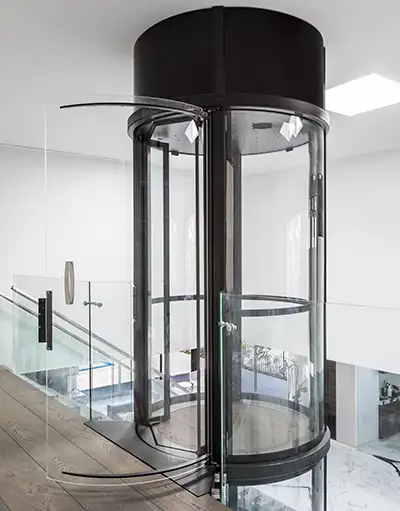

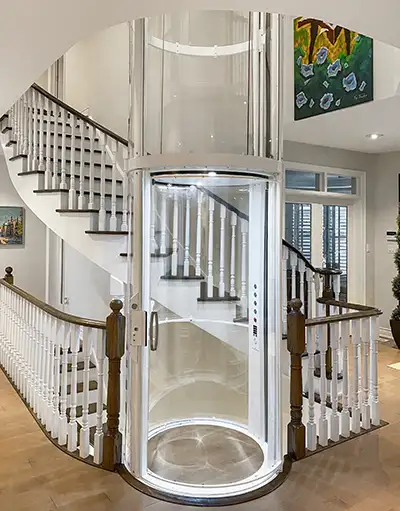

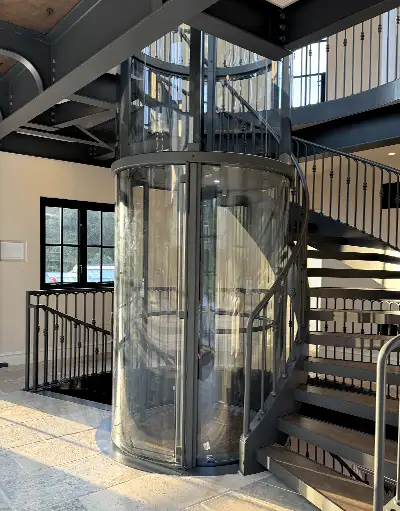

	Vuelift Mini	Round Acrylic	Round + Glass	Octagonal Acrylic	Octagonal Glass	Octagonal + Glass

Standard overhead*	96"	108"	108"	108"	108"	108"
Pit depth	4"	4-12"	4-12"	4-12"	4-12"	4-12"
Floor cut-out (footprint)	49¾"	62"	65 ⅛"	55 ⅜" x 55 ⅜"	55 ⅜" x 55 ⅜"	62" x 62"
Types	1, 2	1, 2, 3R, 6	1, 2, 3R, 6	1, 2, 3R, 6	1, 2, 3R, 6	1, 2, 3R, 6
Clear gate opening	30"	26"	27"	26"	26"	27"
Capacity	500 lb	840 lb	950 lb	840 lb	950 lb	950 lb
Nominal speed	30 fpm	32 fpm	40 fpm	32 fpm	40 fpm	40 fpm
MRL option	Yes	-	Yes	-	-	-
Optional short cab**	-	Yes	-	Yes	Yes	Yes
