Savaria Orion Hydraulic LU/LA elevator
Affordable, automatic commercial accessibility
The Savaria Orion LU/LA hydraulic elevator features fully automatic operation and provides accessibility for low-rise commercial buildings. Using a precision hydraulic drive, the Orion is known for its smooth, reliable performance. The high-efficiency system is compatible with the use of LEED-qualified Hydro Safe hydraulic vegetable oil.
This model requires a machine room, but needs a lower overhead and more shallow pit requirements compared to full-sized passenger elevators.
Orion Hydraulic Drive
Our best-selling LU/LA elevatorThe Savaria hydraulic Orion has been installed in hundreds of buildings in North America and has a reputation for long-term reliability. Used in schools, places of worship, retail and hospitality, the hydraulic Orion can serve every day needs and can be dressed up with stainless steel or glass.
Choose from a selection of cab styles or customize your cab to suit your style needs. Configure with same-side, straight-through or 90-degree access, up to 25 feet of travel with a 1400 lb capacity.
Savaria Orion Hydraulic LU/LA elevator
Standard package
The Orion features fully automatic operation including:
- Two-speed sliding doors with infrared closing sensors in black or architectural white
- Interior cab lighting is auto on/off
- Call the elevator with the provided hall call button that includes illuminated floor position indicators
- Cab operating panel features illuminated buttons and digital floor indicator
- The standard Orion with classic cab includes stainless steel hall calls and cab operating panel
Orion cabs
Learn about the Orion cabs and options.
Learn more
See our ultimate guide to commercial accessibility to learn more about the best options for your project.
Orion Hydraulic Specifications
Applications
Commercial (LU/LA), residential (where code permits), indoors
Drive/motor
1:2 cable hydraulic drive, 5 hp submersed motor
Standard capacity
1400 lb (635 kg)
Minimum pit
14" (356 mm)
Maximum travel distance
25' (7620 mm), with up to 6 stops (subject to local code requirements); higher travel available where code permits.
Minimum overhead clearance
108" (2743 mm), or 110" (2794 mm) for Orion17 cab; for new-build overhead is 134" (3404 mm) per code
Power supply
208 volt, three phase, 60 Hz, 30 amps or 240 volt, single phase, 40 amps, 60 Hz
Lighting supply
120 volt, 15 amps, 60 Hz
Nominal speed
30 ft/min (0.15 m/s)
Savaria Link
Optional. Learn More.
Cab sizes
W48" x L54" x H84" (1219 mm x 1372 mm x 2134 mm) Type 1, 2, 3, 4
W42" x L60" x H84" (1067 mm x 1524 mm x 2134 mm) Type 1, 2, 3, 4
W42" x L54" x H84" (1067 mm x 1372 mm x 2134 mm) Type 1, 2
W51" x L51" x H84" (1295 mm x 1295 mm x 2134 mm) Type 1, 2
Entry/exit configurations available
Warranty
Warranty: A 36-month warranty against defective parts is included through your local dealer.*
*Please note the full details of the Savaria warranty, including the requirement for regular maintenance.
Savaria Orion Gallery
See how others have installed the Orion elevator

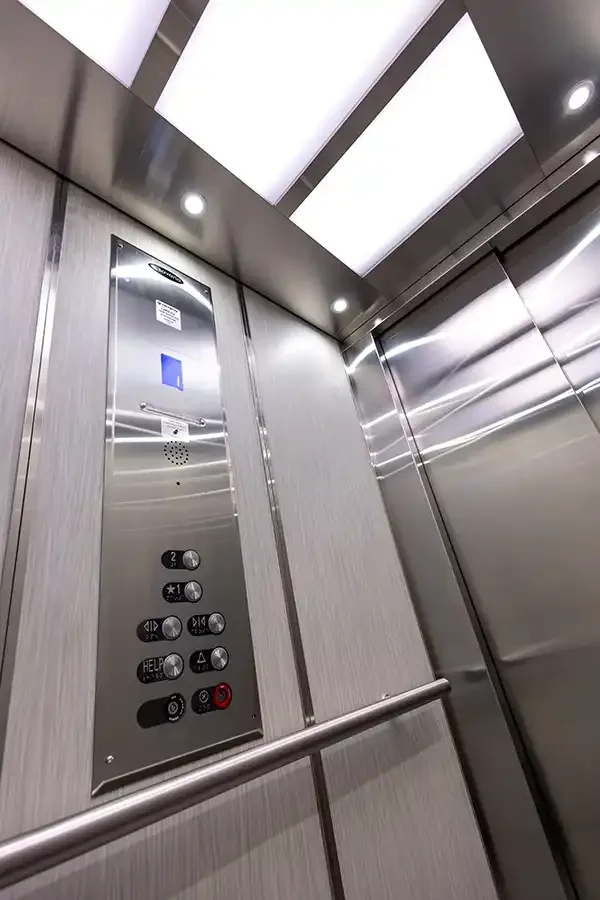

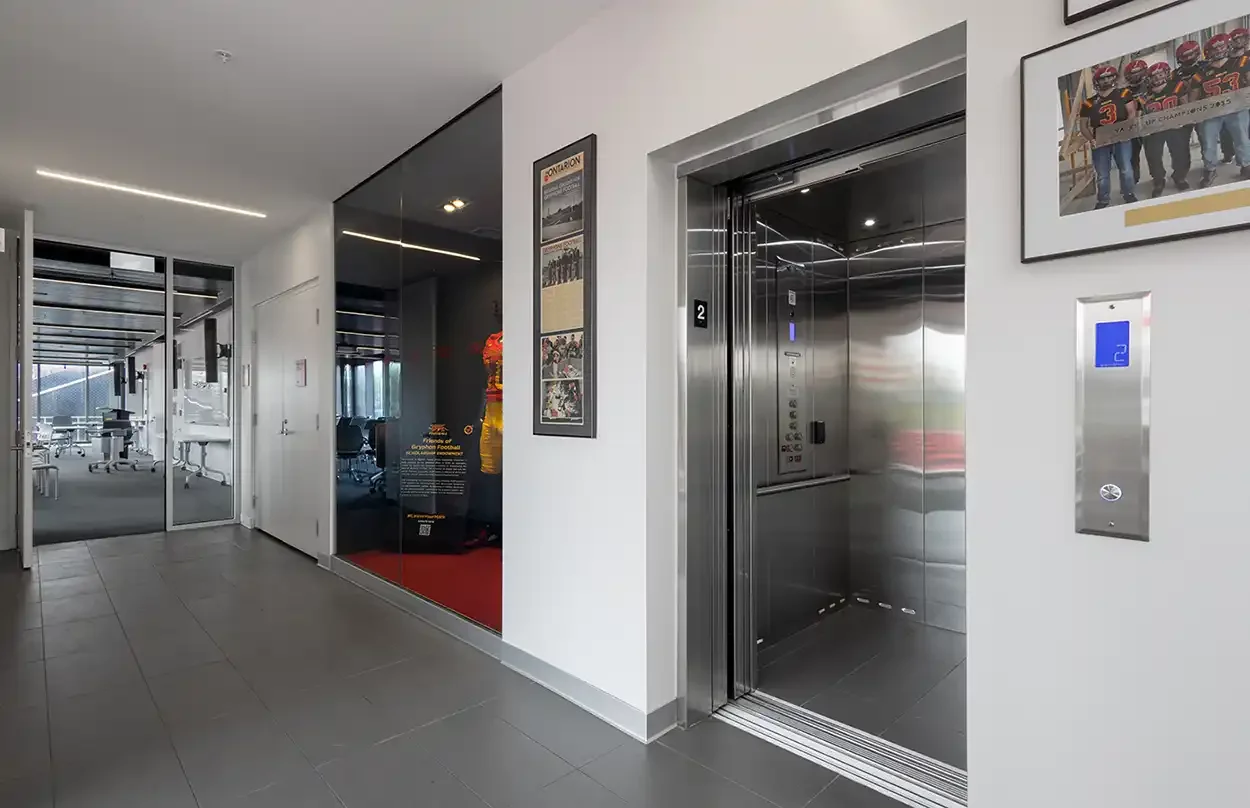

An all-stainless cab in the hydraulic Orion elevator looks sleek and modern at this university stadium building.

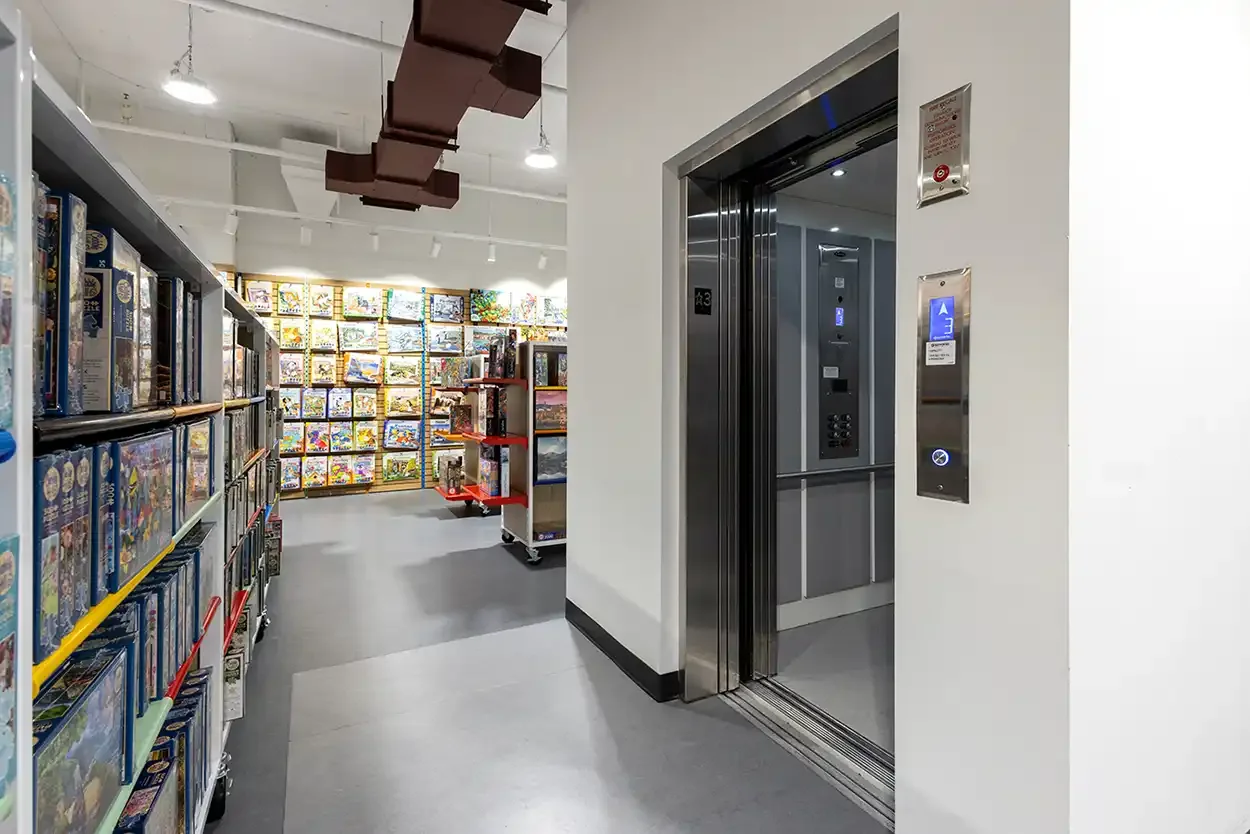

A toys and collectibles retailer has hundreds of products and the Savaria Orion so that all customers can enjoy the store.

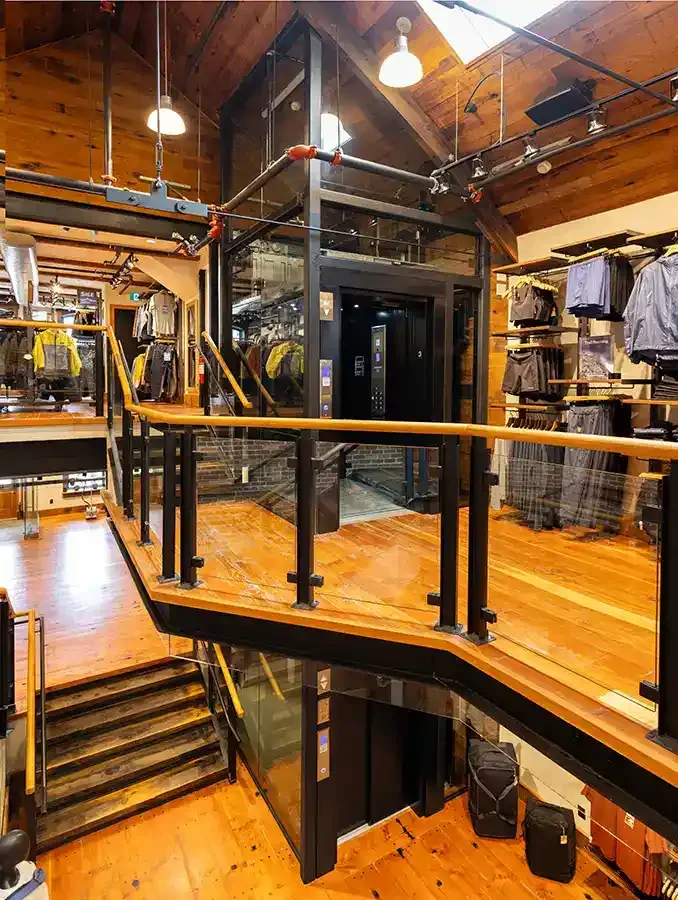

This Ottawa retail store gave the Orion elevator a show-off location with a custom glass hoistway (by others).

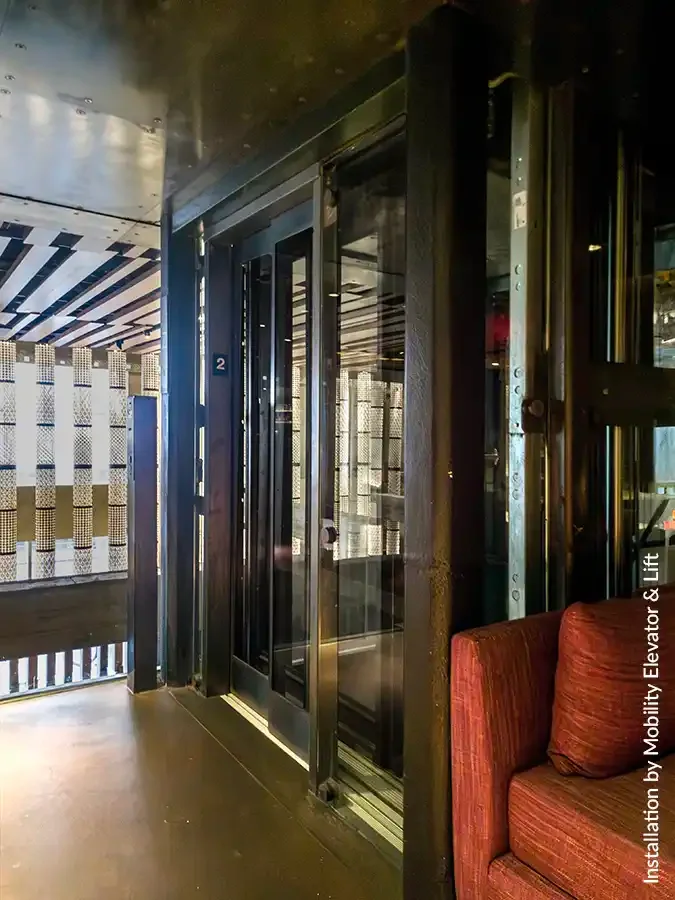

This popular NYC restaurant is fully accessible with an Orion and glass hoistway by others. Installed by Mobility Elevator & Lift.

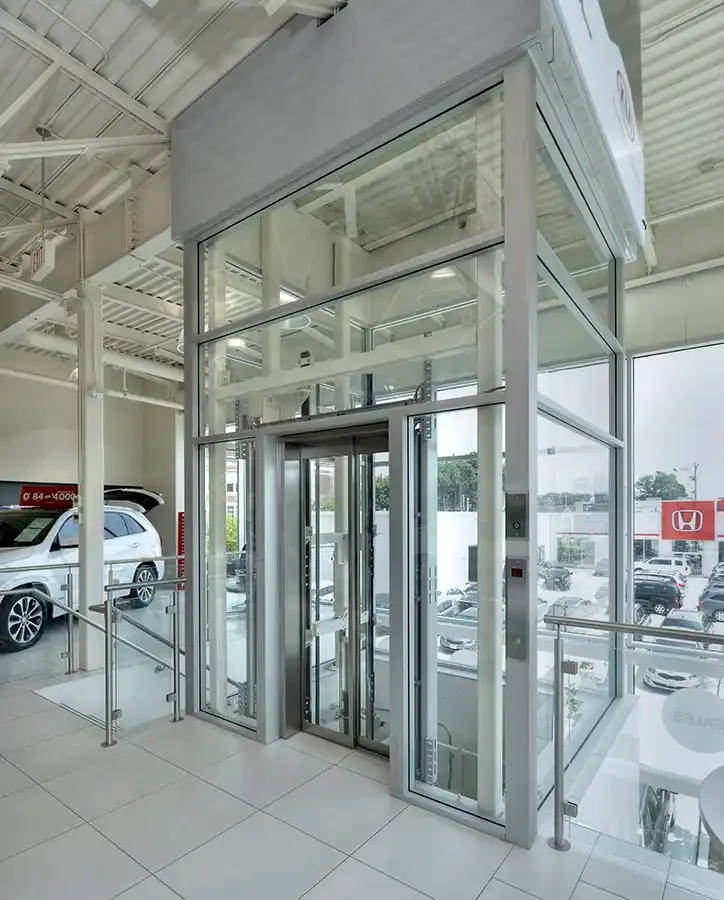

This car dealership in Toronto had a custom glass hoistway built for the stainless steel Orion cab, making accessibility a priority for their clients.

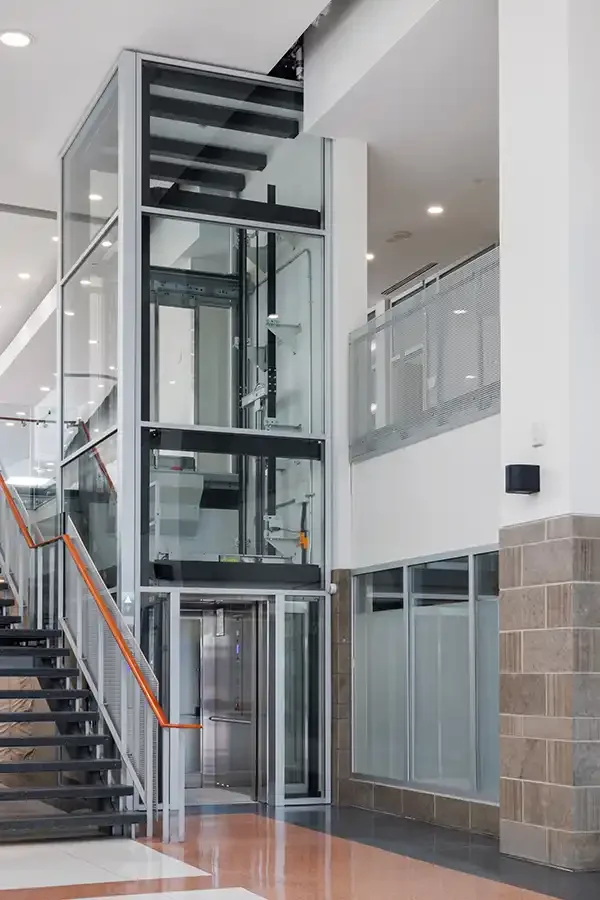

A glass hoistway by others makes this Orion elevator installation in a municipal office stunning.
The cab of the Orion 17 model features stainless steel trimmed plastic laminate panels, here the panels are in gray.

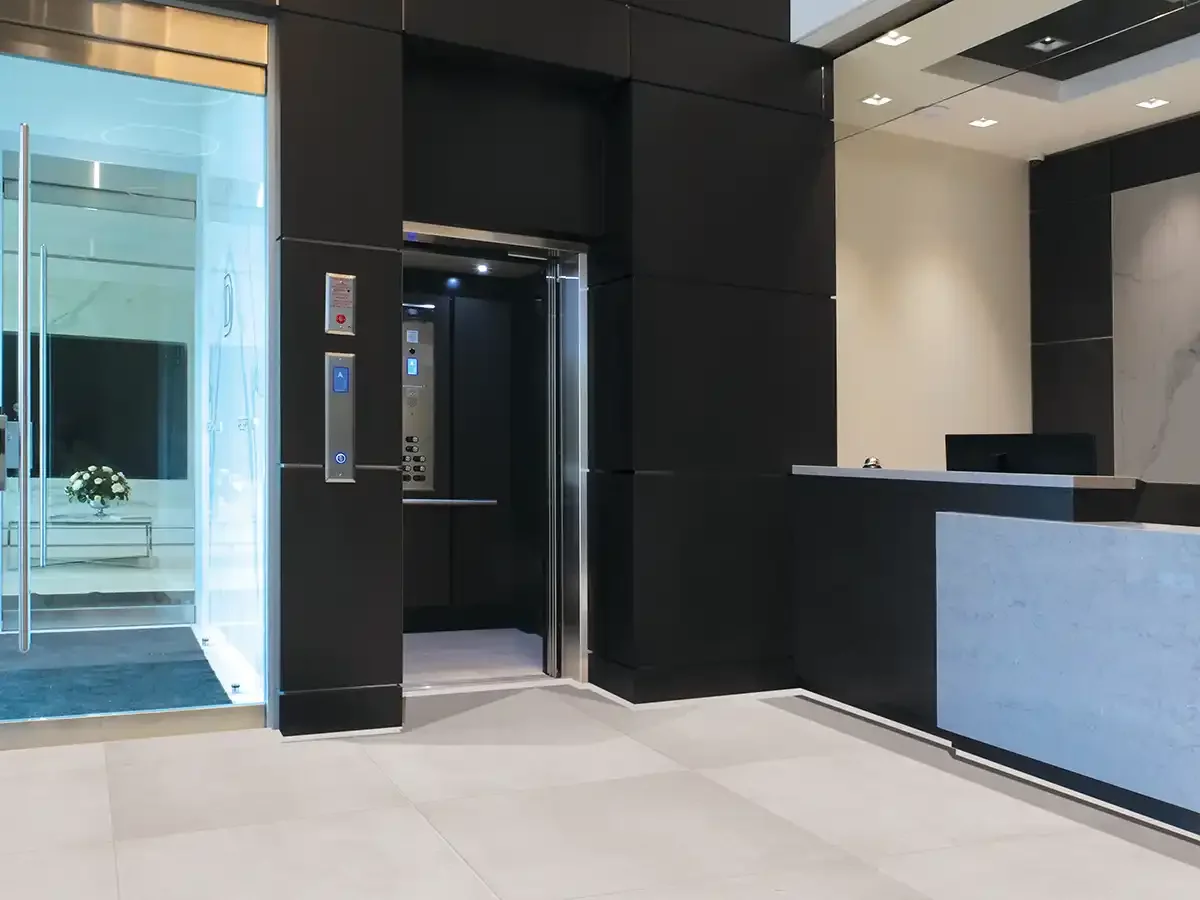

The Orion elevator offers the look of a full-sized passenger elevator, but with a lower overhead required, and shallower pit, it costs significantly less.
