Zenith  Home Elevator

  • Our top-of-the-line traditional home elevator; based on our commercial-grade Orion MRL elevator, the robust Zenith offers the finest in ride quality with whisper-quiet operation
  • Unique geared traction counterweight design requires only a small space in a closet* for components, so a machine room is not needed
  • Multiple cab sizes available with capacity up to 1400 lb, code permitting
  • Services up to 6 stops over a maximum travel distance of 50' (up to 60' in some regions)
  • Openings can be configured for same-side, straight-through or 90º entry and exit, depending on the layout of your home

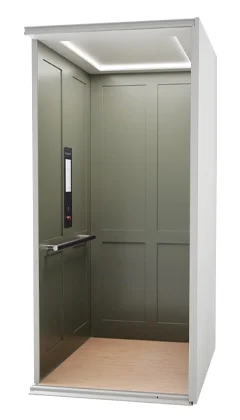

  • Customize cab interior, fixtures and doors here

*Consult your dealer for local code restrictions

The nuts and bolts

Features

Machine roomless: Less space required for the installation.
Counterweight traction with slack cable safety device: Geared motor 1:1 sheave, three 3/8" diameter traction cables (ropes), rope wedge sockets.
Hide-away gate: Innovated gate system tucks away for maximum entryway and interior space.
Other standard features: 8lb/ft T-rail system, anti-creep device, cartop stop switch, automatic cab on/off interior lighting, digital display in car operating panel, surface-mount telephone, oxford white ceiling with 4 LED pot lights, melamine interior in choice of colors or MDF panels.
Standard finishes: Flat melamine or unfinished MDF (see cab configurator), clear or bronze anodized aluminum rectangular cab operating panel and hall call stations, double plywood floor, oxford white ceiling.
Safety features: Battery operated (UPS) emergency lowering and lighting, powered emergency lowering, motorized braking, lockable control panel, elevator door interlocks, emergency stop switch, in-use indicator light on hall stations and slack cable and safety device.
Warranty: 36 months parts. Please see complete details here.

Options

Optional configurations: Type 1, 2, 3, 4 and 5
Cab sizes:
W36" x L54" x H80" (914 mm x 1371 mm x 2032 mm), Type 1, 2, 3, 4, 5
W36" x L60" x H80" (914 mm x 1524 mm x 2032 mm), Type 1, 2, 3, 4, 5
W40" x L54" x H80" (1016 mm x 1371 mm x 2032 mm), Type 1, 2, 3, 4, 5
Custom cab sizes also available
Optional height: 84" (2133 mm), 96" (2438mm)
Optional cab finishes: Hardwood, unfinished veneer, luxury MDF, routed white MDF (see cab configurator).
Optional fixture finishes: Brass #4 finish, stainless steel, blackened stainless steel or architectural white (handrail, cab operating panel, hall call stations). Hall call stations available in rectangular and oval design.
Optional touchscreen COP: large touchscreen to operate functions of elevator, customizable for landing names (at time of order), swipe to change animated screen themes. Not available for concurrent landing configurations.
Doors and gate options: Bi-folding doors, Panel-fold gate in clear anodized aluminum with clear acrylic inserts, or anodized bronze with bronze acrylic inserts, Visi-fold gate anodized bronze with bronze acrylic, Clear-fold gate in clear anodized aluminum with clear acrylic inserts. Power gate and door operators. For the ultimate in convenience, add Savaria automatic slim doors (requires minimum 84" cab height).
Other options: Up to 6 stops, telephone cabinet, alpha-numeric button marking, two-exit opening, buffer springs, speed upgrade to 50 fpm or 60 fpm (1000 lb capacity) subject to local code, keyed hall call stations.

Specifications

Applications: Residential, indoors
Standard capacity: 1400 lb (635 kg)
Maximum travel distance: 50' (15.24 m), 60' (18.29 m) where code permits with up to 6 stops and 2 openings
Nominal speed: 40 ft/min (0.20 m/s)
Motor: Geared motor 1:1 sheave
Minimum pit: 10" (254 mm)
Minimum overhead clearance: 108" (2743 mm)
Power Supply: 208 Volt, three phase, 60 Hz, 30 Amps or 240 Volt, single phase, 40 Amps, 60 Hz
