Zenith Home Elevator

The top-of-the-line home elevator

Indulge in the finest ride quality with whisper-quiet operation. The Zenith combines all the trappings of a commercial elevator, with the space-saving design needed to fit in your home. If you’re looking for the kind of elegance that makes every ride an experience, the Zenith will deliver with proven performance and robust reliability.

Why choose the Zenith residential elevator

For those who like the finer things

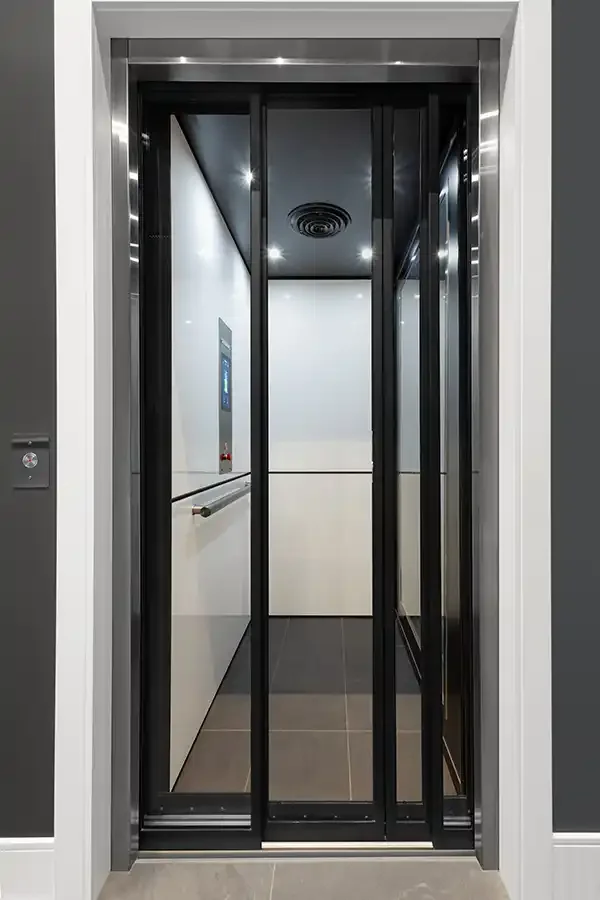

Based on our commercial-grade Orion MRL (machine roomless) elevator, the Zenith features a geared traction counterweight design. Requiring only a small space in a closet for components, the elevator can be installed without a traditional machine room. Take care of every detail with a range of upgrade options like glass-framed auto slim doors and luxury cab finishes.

Engineered from our commercial-grade drive system, the Zenith delivers a butter-smooth ride quality, along with superbly quiet operation. The counterweight roped traction system includes the Savaria commercial motor and gearbox. The machine roomless design means that only a small utility space is needed for the elevator controller.

Background

Zenith Home elevator

Standard package included

  1. Standard cab height is 80"
  2. White ceiling with four LED ceiling fixtures
  3. Cab walls available in a choice of ¾" melamine or unfinished MDF
  4. Cab operating panel (COP) with digital display
  5. Full depth metal handrail
  6. Fixtures are available in clear or bronze anodized aluminum, or architectural white powder coat
  7. Illuminated oval or rectangular hall call plates
  8. Plywood sub-floor for finishing on site
Zenith Home elevator
An open home elevator with white exterior doors and a dark wood-paneled interior, installed in a residential setting with light wood flooring and decorative wall panels.

Get inspiration

Explore real world installations by other homeowners to get ideas about how to make your Savaria home elevator suit your needs. From simply modern to traditional sophistication, there are many ways to dress up your elevator.

3D render of a red luxury mdf home elevator cab.

The look you want

Our cab configurator simulates the cab interior finishes including walls, fixtures and cab gates. We offer a great range of factory finishes, see how it works.


Zenith Specifications

Applications

Residential, indoors

Drive/motor

Geared motor 1:1 sheave, three ⅖" (10 mm) steel traction cables, slack cable safety device

Standard capacity

1400 lb (635 kg)

Minimum pit

10" (254 mm)

Maximum travel distance

50' (15.24 m), 60' (18.29 m) where code permits with up to 6 stops and 2 openings

Minimum overhead clearance

108" (2743 mm)

Power / Lighting supply

208 volt, three phase, 60 Hz, 30 amps or 240 volt, single phase, 40 amps, 60 Hz
The lighting system requires an additional 120 volt, 60Hz, 15 amp circuit.

Nominal speed

40 ft/min (0.20 m/s)

Levels serviced

Up to 5 stops, 6 where code permits

Doors/entrances

The standard Zenith features one door, but you may add a second door for straight-through access, or 90-degree access.

One Touch Alert

Optional. Learn more.

Savaria Link

Optional. Learn more.

Cab sizes

W36" x L54" x H80" (914 mm x 1372 mm x 2032 mm)
W36" x L60" x H80" (914 mm x 1524 mm x 2032 mm)
W40" x L54" x H80" (1016 mm x 1372 mm x 2032 mm)
Custom cab sizes also available

Cab configurations available

Cab 1
Cab 2
Cab 3
Cab 4
Cab 5

Warranty

A 36-month warranty against defective parts is included through your local dealer.*

*Please note the full details of the Savaria warranty, including the requirement for regular maintenance.


Additional Options

Make your Zenith residential elevator more luxurious
  • Cab height: 84" (2134 mm), 96" (2438 mm)
  • Up to 6 stops
  • Telephone cabinet
  • Alpha-numeric button marking
  • Two-exit opening
  • Buffer springs
  • Speed upgrade to 50 fpm or 60 fpm (1000 lb capacity) subject to local code
  • Keyed hall call stations
Cab Options
Touch screen call operating panel for home elevators.

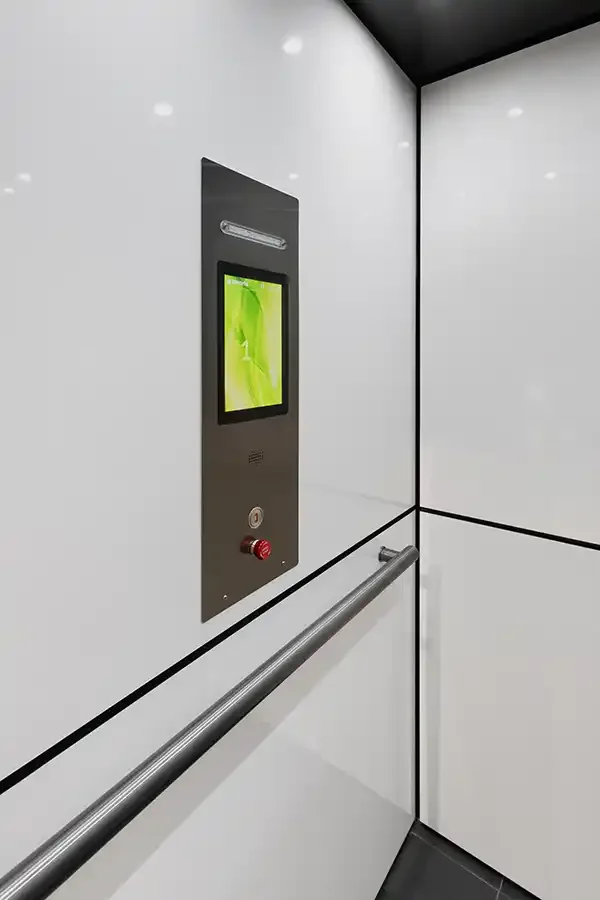

Touchscreen operating panel

Becoming one of our most popular upgrades, the touchscreen cab operating panel controls elevator functions with a large glass touchscreen, including customizing landing names.

LEARN MORE
Various wood and metal samples laid out for home elevator cab customization.

Interior finishes

Optional cab walls include luxury MDF panels, routed white MDF, veneer, or solid hardwood. Pair with hardware in your choice of metal finishes.

LEARN MORE
Home elevator with a see through accordion gate.

Cab gates

Your elevator cab must include a gate for safety. Choose from accordion-style, bi-folding, or automatic sliding gates in metal or glass.

LEARN MORE
Residential home elevator with a flush white door that blends into the decor, white interior, and a modern touch screen control panel.

Luxury flush door

Be sure to consider your hall landing doors. To be fully compliant, the Savaria luxury flush door delivers a sleek solution. We also offer a frame-only version to work with your supplied door slab.

LEARN MORE

Key considerations

Learn more about how to choose the best home elevator, how much it costs, what is involved in installing a residential elevator – all here in our ultimate home elevator guide.

3D render of a home elevator installed in a home that can access the garage, dining area and bedroom.
