Compare Through-Floor Lifts
Savaria offers 4 models of through-floor lifts, the Luma lift and Luma L lift are self-supporting, and the Telecab and Telecab 17 models must be anchored to a support wall. Compare the models below.
Through-Floor Home Lifts (Two-Stop) Comparison Chart
| Luma | Luma L | Telecab | Telecab 17 | |
|---|---|---|---|---|
 |  |  |  | |
| Capacity | 400 | 500 | 500 | 845 |
| Minimum floor cut-out* | 38" x 47" | 46" x 51" | 36" x 60 ½" | 35 ¼" x 60 ½" |
| Max cab size | 29 x 27 ¾" | 31 ½" x 47 ¼" | 30" x 46" | 36" x 54" |
| Cab height | 78 ¾" | 78 ¾" | 78" | 80" |
| Max travel distance | 13' | 13' | 23' | 23' |
| Support system | Self-supporting | Self-supporting | Requires support wall | Requires support wall |
| One Touch Alert | Standard | Standard | Optional | Optional |
| Wheelchair accessible | - | Possible** | Yes | Yes |
| Speed | 13 fpm | 20 fpm | 20 fpm | 20 fpm |
| Drive | Winding drum | Winding drum | Hydraulic | Hydraulic |
| Types | 1, 2 | 1, 2 | 1, 2, 5*** | 5 |
| Other | - | Power door option | 4 cab sizes | Largest capacity |
| Emergency service | Battery powered, provides several up/down trips during power failure | Battery powered, provides several up/down trips during power failure | Manual lowering mechanism, with optional battery back-up system available | Manual lowering mechanism, with optional battery back-up system available |
Through-floor lift configurations
Luma Lift

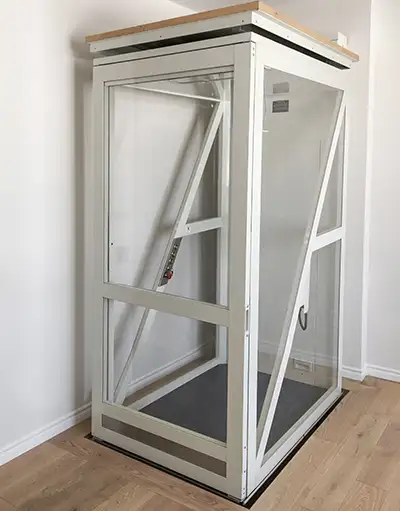

Telecab lifts
