K2 Plus   Straight Stairlift

  • Heavy duty unit for home or commercial use on a straight-run staircase
  • Choose from 2 seat options, including a spacious Plus seat for maximum comfort and 400 lb capacity (350 lb commercial)
  • Lift folds away when not in use to allow for more space on the stairway
  • Quiet and smooth-riding operation from the rack and pinion drive system
  • Battery operated with continuous charging along the rail; can be used during a power failure
  • For stairs with multiple levels, curves or intermediate landings, see the Stairfriend stairlift

The nuts and bolts

Features

Heavy duty capacity: Ready for lifting up to 400 lb (residential applications with Plus seat) on either side of a straight-run staircase.
Two seat choices: Plus seat adjusts up to 24 ¼" wide and offers 400 lb capacity for residential applications and 350 lb for commercial; L seat adjusts to up to 20" wide and has a 350 lb capacity for both residential and commercial applications.
Worry-free operation: Battery operated with continuous charging along the rail using standard power; can be used several times during a power failure.
Simple controls: Onboard toggle controls and 2 reliable radio frequency call stations to call the chair up or down when needed.
Smooth, quiet operation: From the rack and pinion drive system.
Obstruction detection: Multiple safety sensors to detect an obstacle and stop the stairlift if necessary.
LED diagnostic lights: To advise of any issues (not available on Canadian commercial units).
Master shut off: Will turn off if not used for an extended amount of time.
Safety features: Swivel and lock seat for added stability getting on and off the chair; additional safety features include retractable seat belt, non-slip footrest, overspeed brake and emergency stop button on chair for commercial models.

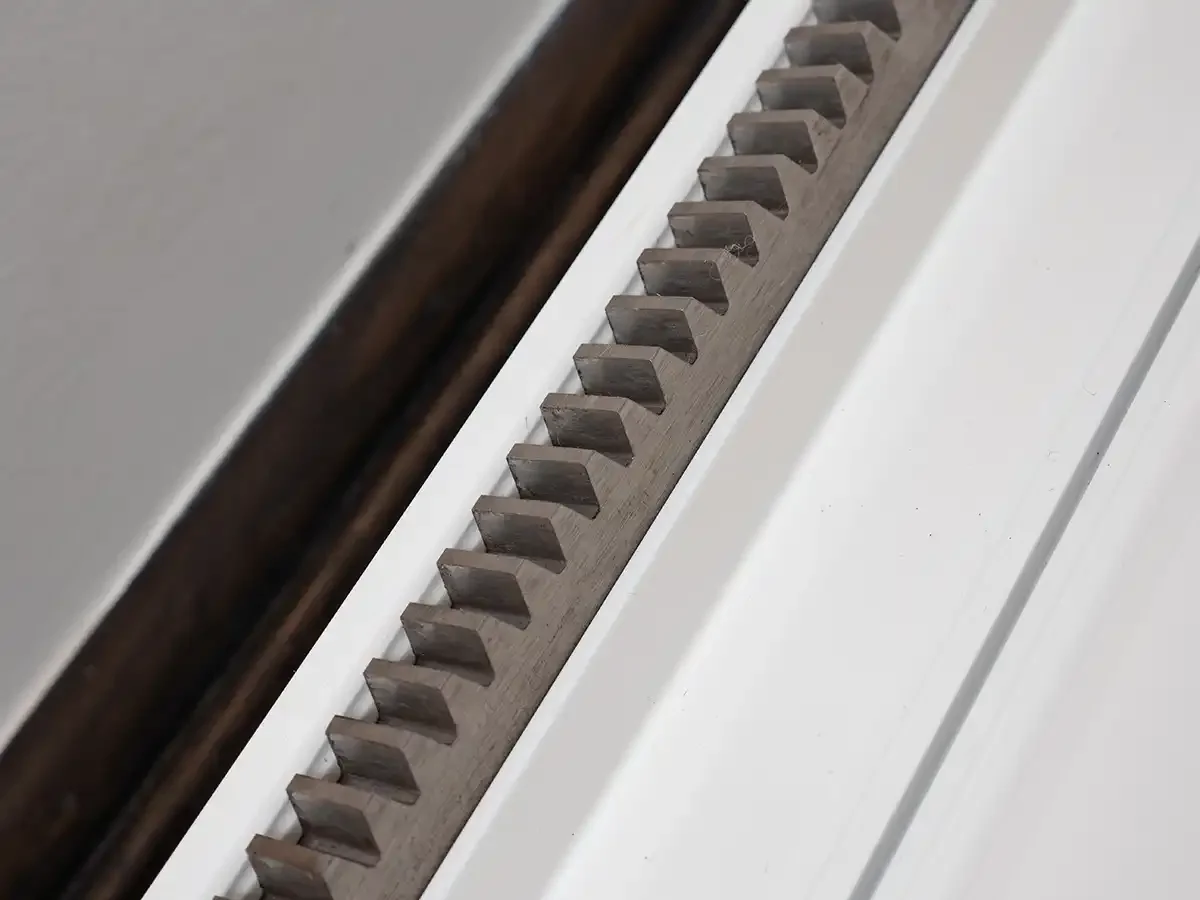

Standard finishes: Neutral color carriage with attractive stainless steel gear rack and white rail; durable, easy-clean vinyl seat.
Warranty: 36 months parts. Please see complete details here.

Options

Optional configurations: Right or left side installation.
Choice of seat: Plus seat or L seat.
Rail extension brackets: To create no intrusion at top landing when you have a door at the top of the stairs.
Flip-up rail: Manual flip up rail for bottom landing.

Specifications

Applications: Residential, commercial (code permitting), indoor, straight-run stairs
Standard capacity: 400 lb (182 kg) residential with Plus seat; 350 lb (159 kg) commercial
Maximum travel: 32 ft (9.75m)
Travel speed: 15 ft/min (0.08m/s)
Drive: Rack and pinion
Motor: 24 VDC, 1/3 HP, 2500 RPM
Fold-up width: 13.5" (34.3 cm Fold-out width: 25.5" (64.8 cm)
Range of incline: 30˚ to 55˚

Documents

    Gallery of installations

    K2 Stairlift 1Thumbnail for K2 Stairlift 1
    K2 Plus straight stairlift

    Front view of the K2 Plus stairlift with Plus seat folded down

    K2 Stairlift 2Thumbnail for K2 Stairlift 2
    K2 Plus straight stairlift

    Front view showing the Plus seat folded up at the bottom of the stairs

    Thumbnail for
    K2 Plus straight stairlift

    View of the K2 Plus unfolded at the bottom of a straight flight of stairs

    K2 Stairlift 4Thumbnail for K2 Stairlift 4
    K2 Plus straight stairlift

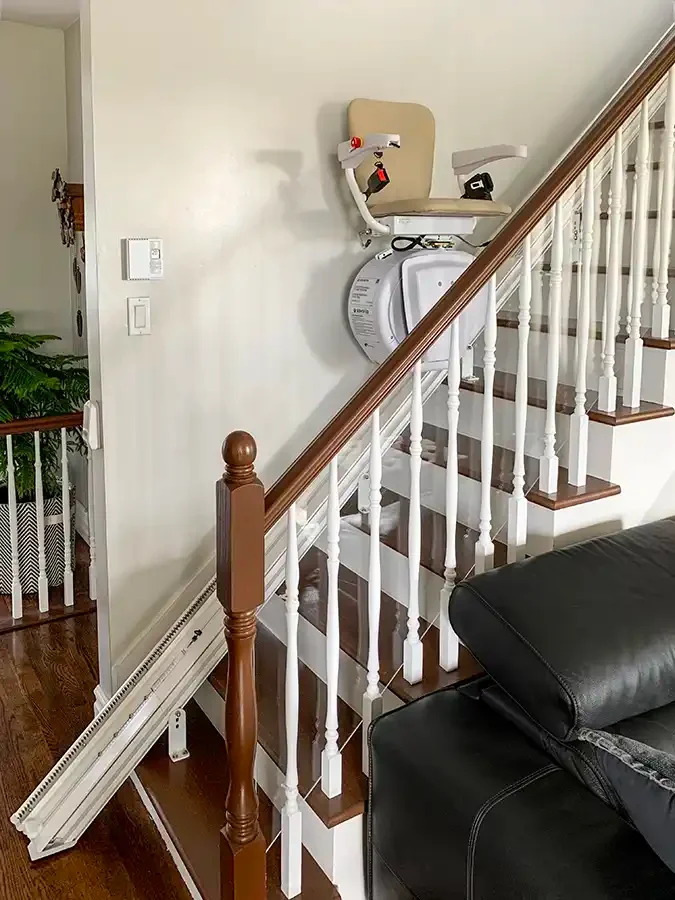

    Side view of a K2 Plus folded up against the wall at the bottom of the stairs

    K2 Stairlift 6Thumbnail for K2 Stairlift 6
    K2 Plus straight stairlift

    K2 Plus shown unfolded at the bottom of the stairs

    K2 Stairlift 6Thumbnail for K2 Stairlift 6
    K2 Plus straight stairlift

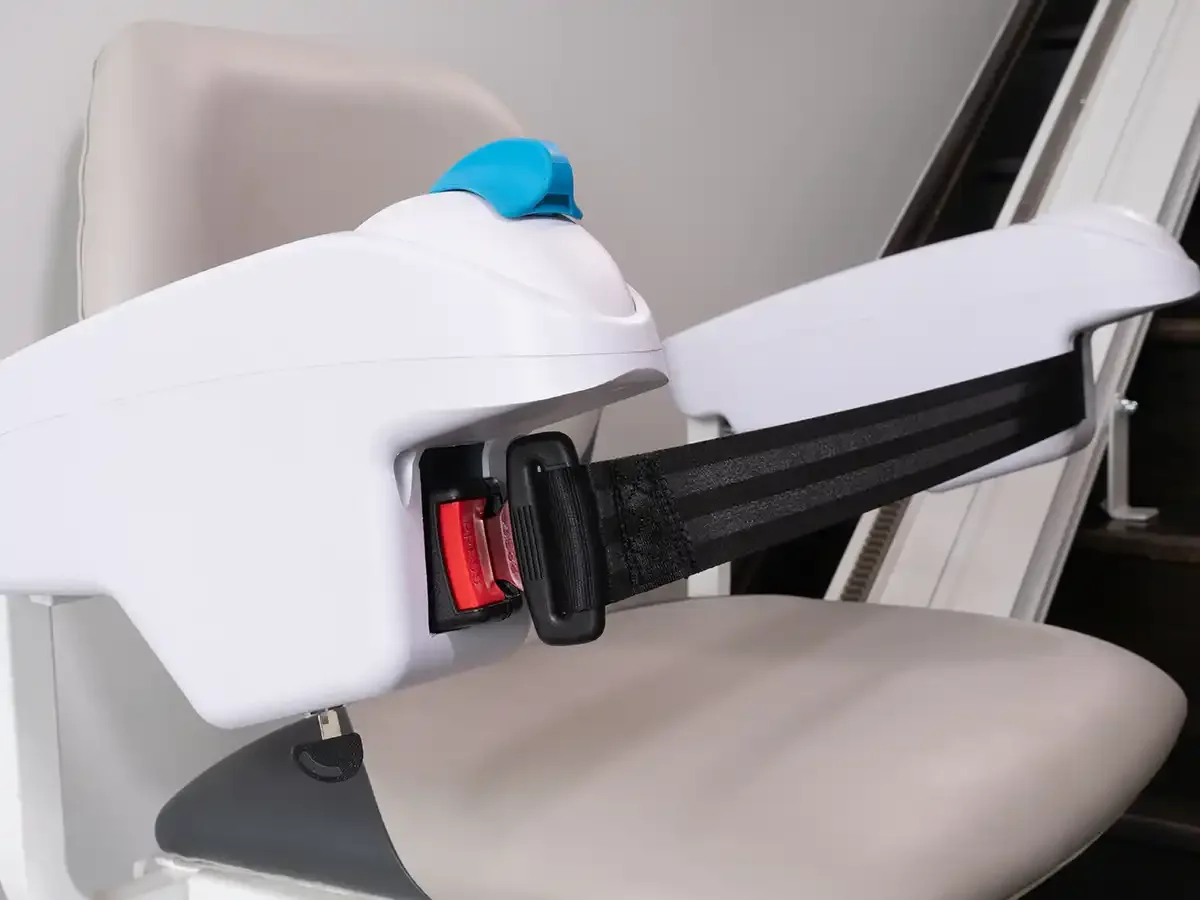

    Detail of the K2 Plus stairlift seatbelt and access key

    K2 Stairlift 6Thumbnail for K2 Stairlift 6
    K2 Plus straight stairlift

    Close up of the K2 Plus armrest showing toggle control and seatbelt clip

    K2 Stairlift 6Thumbnail for K2 Stairlift 6
    K2 Plus straight stairlift

    Detail of the K2 plus stairlift seatbelt on the Plus size seat

    K2 Stairlift 6Thumbnail for K2 Stairlift 6
    K2 Plus straight stairlift

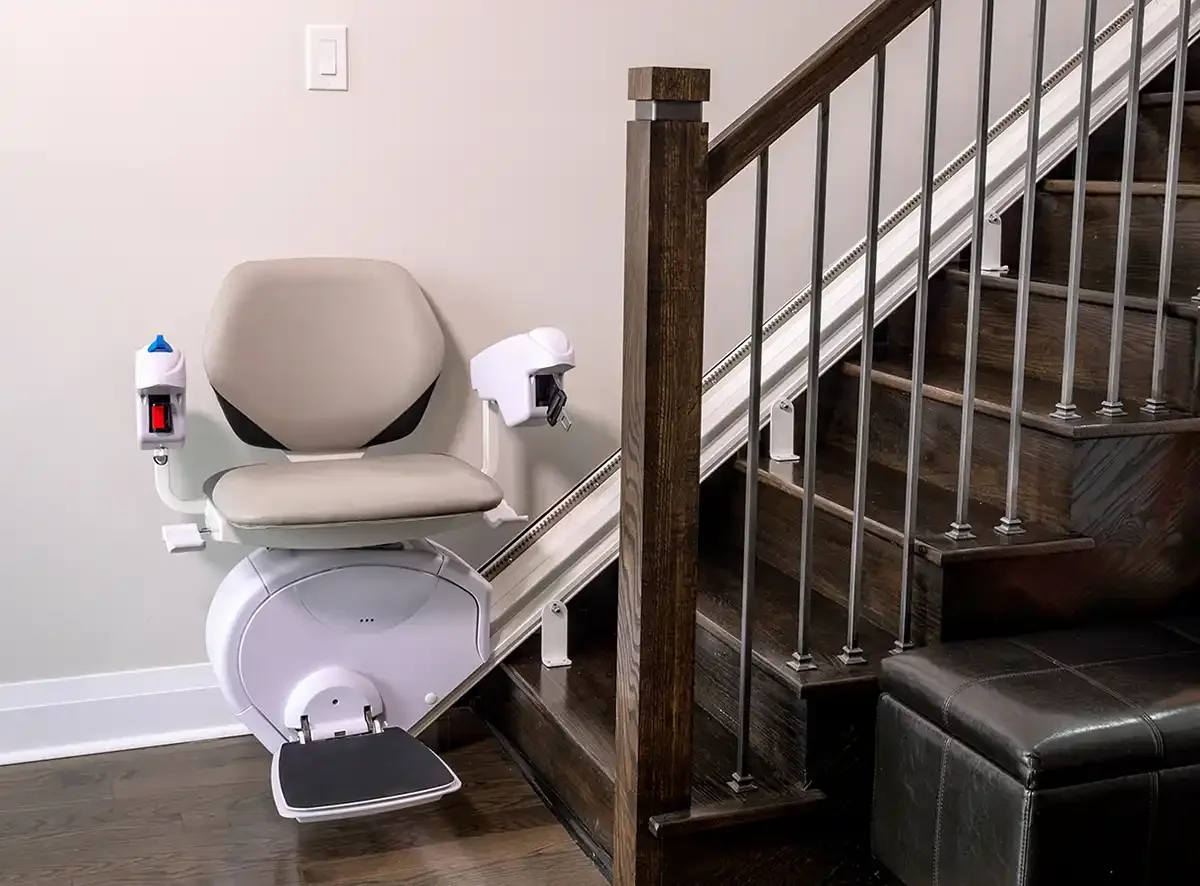

    K2 Plus stairlift unfolded at the bottom of the stairs, ready for a passenger

    K2 Stairlift 6Thumbnail for K2 Stairlift 6
    K2 Plus straight stairlift

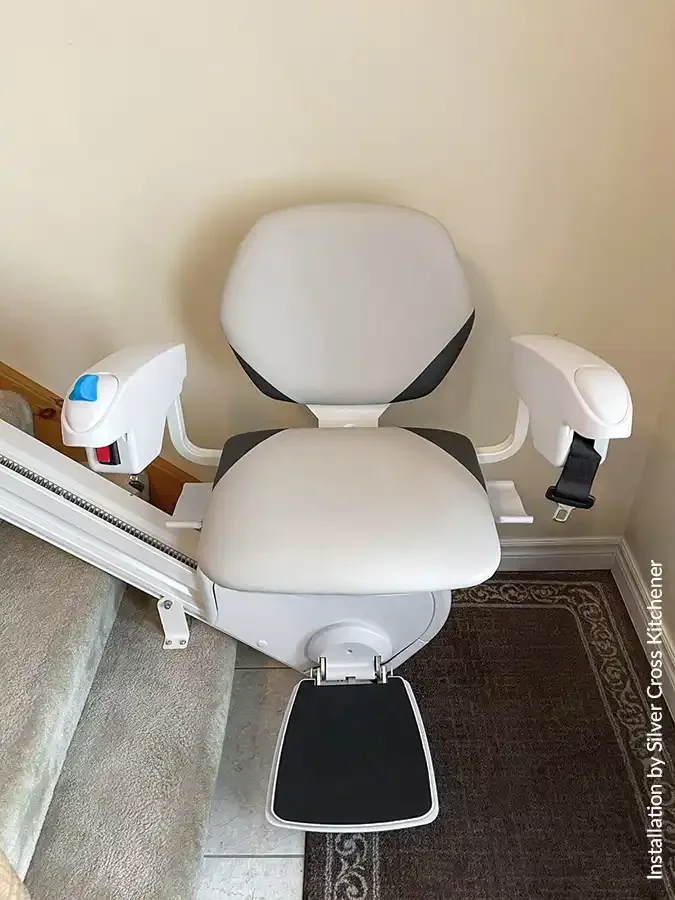

    Top view of a K2 Plus at the bottom of the stairs with Plus seat unfolded
